Square-D / Schneider - Square D 9001KYK317 600 VAC 10 Amp 1NO 1NC NEMA 1/3/4/13 Die-Cast Zinc Push Button Control Station

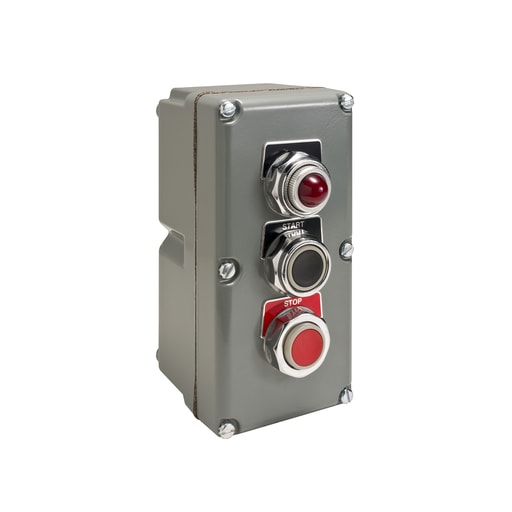

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has a gray die cast zinc enclosure (9001KY3) with three operators. Control station has a 110/120 VAC 50/60 HZ transformer type pilot light with a red lens (9001KP1R32) in the top hole. Control station has a black full guard momentary push button (9001KR1B) in the middle hole. The push button has a contact block with 1 normally open contact (9001KA2). The operator has a black legend plate that is marked START (9001KN201). Control station has a red no guard momentary push button (9001KR3R) in the bottom hole. The push button has a contact block with 1 normally closed contact (9001KA3). The operator has a red legend plate that is marked STOP (9001KN202). The enclosure has one 0.75 inch conduit opening with 14 NPT thread. Enclosure is 5.75 inches tall, 3.62 inches wide and 4.74 inches deep. This enclosure is rated for NEMA 1, 3, 4, 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of . 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications." Cross Sell Products: 9001KYK117; 9001KYK14; 9001KYK23; 9001KYK25
