Square-D / Schneider - Square D 9001SKR9P35LRRH13 30 mm 600 VAC 2-Position 1NO 1NC Red Body Plastic Bezel Push-Pull Illuminated Push Button

CopyCopy
Square-D / Schneider - Square D 9001SKR9P35LRRH13 30 mm 600 VAC 2-Position 1NO 1NC Red Body Plastic Bezel Push-Pull Illuminated Push Button

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901043133

  • Actuator - ILLUMINATED

  • Amperage - 10 Amp

  • Catalog Number - 9001SKR9P35LRRH13

  • Color - Red

Packaging

  • 1 ea

EAN

00785901043133

Part #

223788

Catalog #

9001SKR9P35LRRH13

Commercial reference

9001SKR9P35LRRH13

12-Digit UPC:

785901043133

Actuator:

ILLUMINATED

Amperage:

10 Amp

Catalog Number:

9001SKR9P35LRRH13

Color:

Red

Country of Origin:

Mexico

ERP_productname:

SQD 9001SKR9P35LRRH13 PUSHBUTTON 28V 30MM SK +OPTIONS

Enclosure:

NEMA 1/2/3/3R/4/4X/6/12/13

Family Brand Name:

Schneider Electric

Size:

30 mm

Sub Brand:

9001SK

Tc Connection:

SCREW CLAMP

Type:

Push-button

Voltage:

600 Volt

SoneparProductId:

SKU_US_26370961

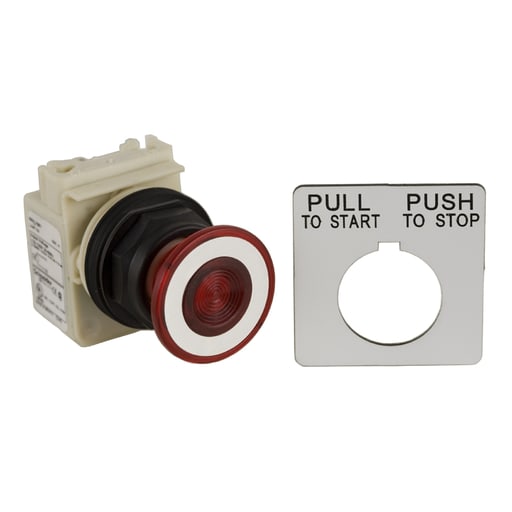

This mushroom shaped illuminated push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance due to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 4X, 12 and 13) Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
