Square-D / Schneider - Square D 9001SKY203 600 VAC 10 Amp 1NO 2NC NEMA 1/3/4/4X/13 Polymeric Push Button Control Station

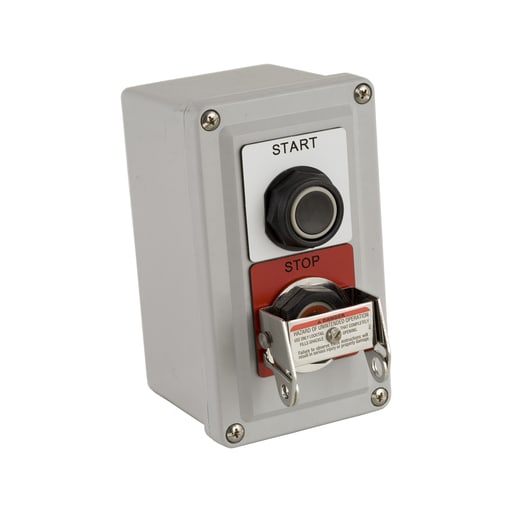

The 9001SK push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This assembled control station has polymeric (plastic) enclosure (9001SKY2) with two push button operators. Control station has a black full guard momentary push button (9001SKR1B) in the top hole. The push button has a contact block with 1 normally open and 1 normally closed contact (9001KA1). The operator has a legend plate that is marked START (9001SKN101WP). Control station has a red no guard momentary push button (9001SKR3R) in the bottom hole. The push button has a contact block with 1 normally closed contact (9001KA3). The operator has a red legend plate that is marked STOP (9001SKN102RP). The STOP push button has a stainless steel lock out (9001K5). The enclosure has one 0.75 inch conduit hub with 14 NPT thread. Enclosure is 7.65 inches tall, 3.82 inches wide and 4.53 inches deep. This enclosure is rated for NEMA 1, 3, 4, 4X 6, 12 and 13 environments. The control station is UL Listed and CSA certified. "The modular range of . 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications." Cross Sell Products: 9001SKY201
