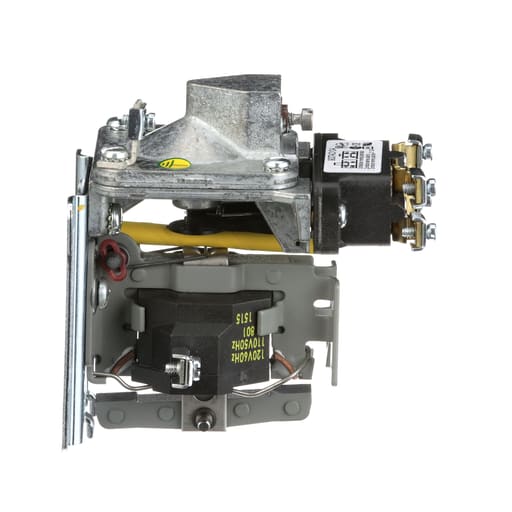

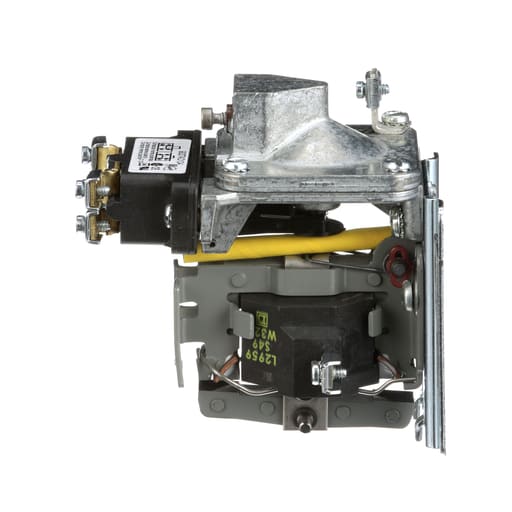

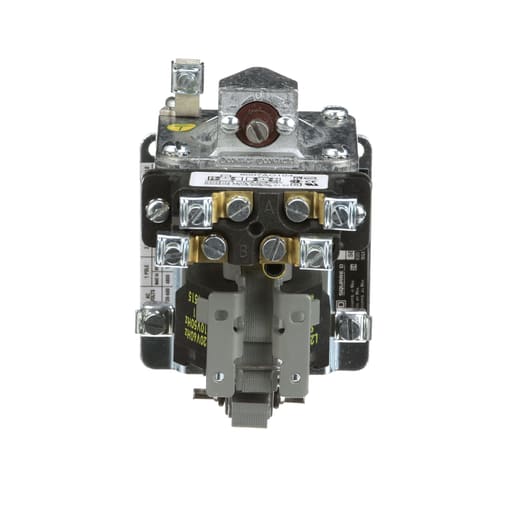

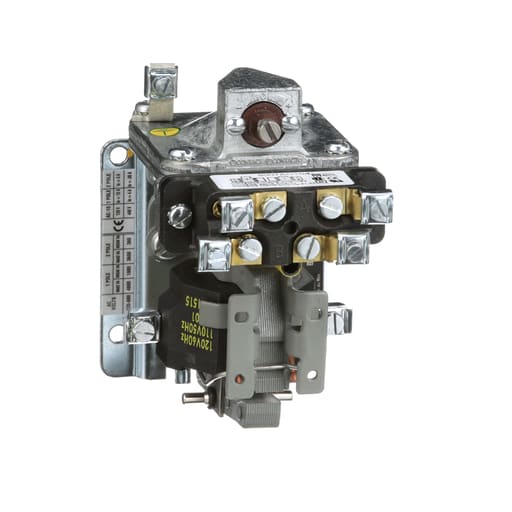

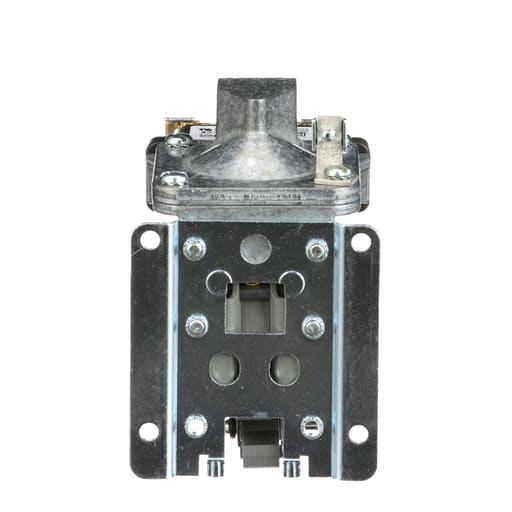

Square-D / Schneider - Square D 9050AO10EV03 240 VAC 60 Hz Coil 15 Amp 1NO 1NC 0.1 Second to 1 Minute Pneumatic Timer
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901865032
Catalog Number - 9050AO10EV03
Country of Origin - Mexico
Current - 15 Amp
Depths - 111 mm
Packaging
1 ea
EAN
00785901865032
Part #
228158
Catalog #
9050AO10EV03
Commercial reference
9050AO10EV03
12-Digit UPC:
785901865032
Catalog Number:
9050AO10EV03
Country of Origin:
Mexico
Current:
15 Amp
Depths:
111 mm
ERP_productname:
SQD 9050AO10EV03 PNEUMATIC TIMER 600V 15AMP A +OPTIONS
Family Brand Name:
Square D
Heights:
67 mm
Size:
102 MM,111 MM,67 MM
Tc Connection:
Screw-clamp terminals
Type:
Timer;SPDT
Widths:
102 mm
SoneparProductId:
SKU_US_26908919
9050A pneumatic timing relays are designed for very rugged conditions. The timing range of this on delay timer is typically about one minute. This timing relay can be converted by a customer from on delay to off delay. The replacement snap switch for this timing relay is a 9007AO104. The contacts have a 15A resistive rating at 600 VAC. The coil can be replaced. This timing relay has a 220/240 VAC 50/60 Hz coil. This product is not enclosed in an enclosure. 9050A pneumatic timing relays are UL listed and CSA certified. 9050A pneumatic timing relays are UL listed and CSA certified.
