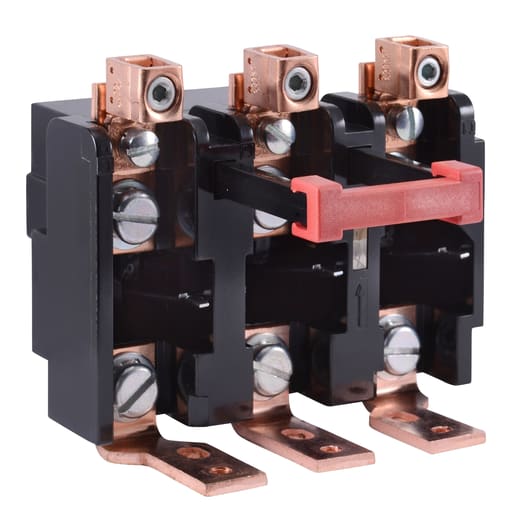

Square-D / Schneider - Square D 9065SDO12 600 VAC 90 Amp 3-Pole Size 3 NEMA Melting Alloy Thermal Overload Relay

CopyCopy
Square-D / Schneider - Square D 9065SDO12 600 VAC 90 Amp 3-Pole Size 3 NEMA Melting Alloy Thermal Overload Relay

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901788539

  • Applications - Starter

  • Catalog Number - 9065SDO12

  • Country of Origin - USA

  • Depths - 145.8 mm

Packaging

  • 1 ea

EAN

00785901788539

Part #

191668

Catalog #

9065SDO12

Commercial reference

9065SDO12

12-Digit UPC:

785901788539

Applications:

Starter

Catalog Number:

9065SDO12

Country of Origin:

USA

Depths:

145.8 mm

ERP_productname:

SQD 9065SDO12 OVERLOAD RELAY

Family Brand Name:

Square D

Heights:

142 mm

NEMA Size:

3

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

5.74 in

Sub Brand:

SCHNEIDER ELECTRIC

Trip Type:

MELTING ALLOY

Type:

OVERLOAD RELAY

Voltage:

600 Volt

Widths:

134.9 mm

SoneparProductId:

SKU_US_69908073

Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This replacement overload relay for a Type S NEMA size 3 three phase starters with 3 poles. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. The output contact is replaceable. Relay has a maximum voltage rating of 600 VAC. This overload relay is 5.59 inches tall, 5.31 inches wide and 5.74 inches deep. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: CC50.1
