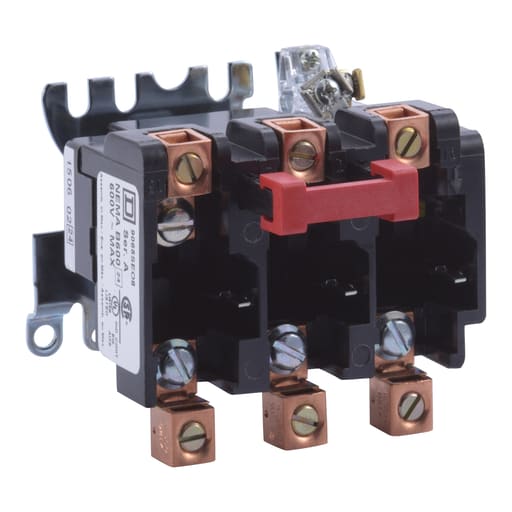

Square-D / Schneider - Square D 9065SEO8 600 VAC 3-Pole Size 2 NEMA Melting Alloy Thermal Overload Relay

Overload relays are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses, circuit breakers, or motor short circuit protectors. The exclusive one piece melting alloy thermal unit is used in these relays to provide protection against overheating of the motor winding insulation due excessive over current. The melting alloy thermal unit to be used is determined by the full load current of the motor to be controlled, number of phases and the enclosure size. This 45A separate mount overload relay can be used with NEMA size 2 three phase starters with 3 poles. Three phase overload relays require 3 thermal units. When 3 thermal units are properly installed the relay can be reset. Overload relay has a trip free reset mechanism. Size 2 overload relays will accept thermal units up to 45 amperes. Relay has a maximum voltage rating of 600 VAC. This overload relay is 3.31 inches tall, 3.50 inches wide and 3.97 inches deep. This separate mount overload relay is UL Listed and CSA Certified. The output contact is replaceable. Thermal overload relays provide motor overcurrent protection. This overload relay is for NEMA Size 2 three phase starters. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9999SO4; 9998SO31; B4.85; B5.50; B6.25; B6.90; B7.70; B8.20; B9.10; B10.2; B11.5; B12.8; B14.0; B15.5; B17.5; B19.5; B22.0; B25.0; B28.0; B32.0; B36.0; B40.0; B45.0; B50.0; B56.0; B62.0; B70.0; B79.0; B88.0
