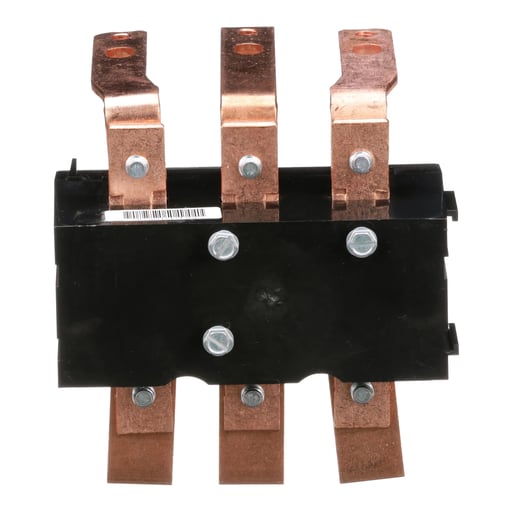

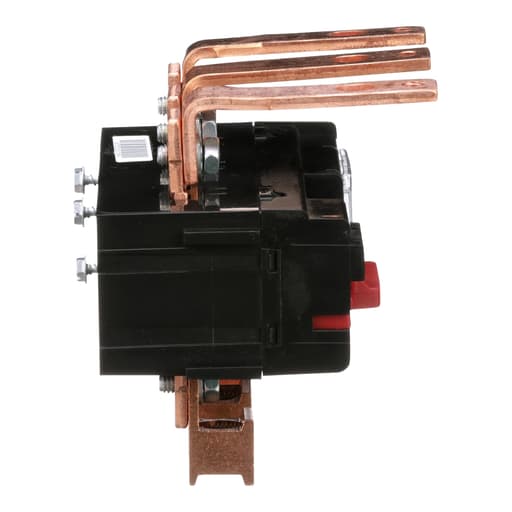

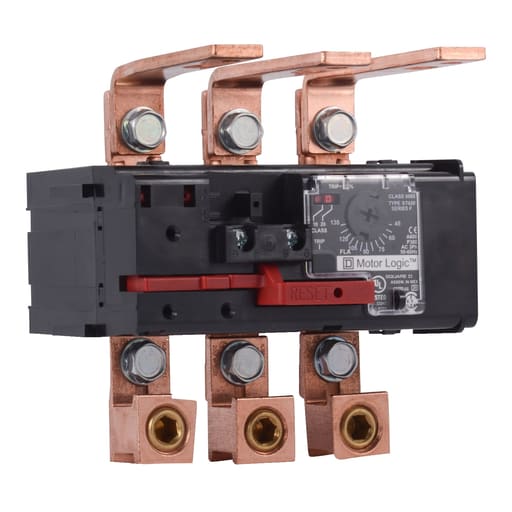

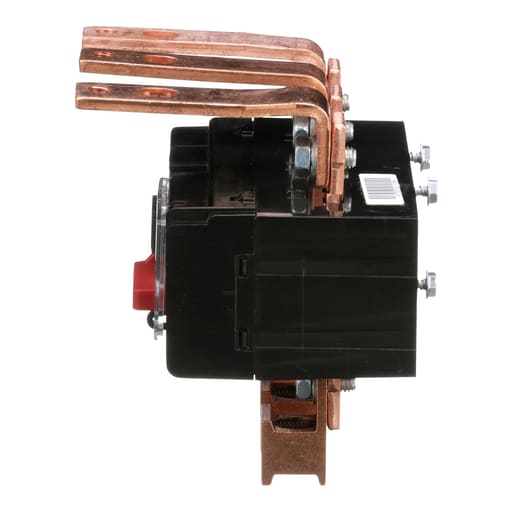

Square-D / Schneider - Square D 9065ST420 600 VAC 45 to 135 Amp 3-Phase Size 4 NEMA Solid State Thermal Overload Relay

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901751977

  • Applications - STARTER

  • Catalog Number - 9065ST420

  • Country of Origin - Mexico

  • Depths - 115.1 mm

Packaging

  • 1 ea

EAN

00785901751977

Part #

126773

Catalog #

9065ST420

Commercial reference

9065ST420

12-Digit UPC:

785901751977

Applications:

STARTER

Catalog Number:

9065ST420

Country of Origin:

Mexico

Depths:

115.1 mm

ERP_productname:

SQD 9065ST420 SOLID STATE OVERLOAD RELAY 600VAC 135A

Family Brand Name:

Square D

Heights:

150.4 mm

NEMA Size:

4

Number of Phases:

3 Phase

Size:

115.1 MM,135.4 MM,150.4 MM,4

Trip Type:

SOLID STATE

Type:

OVERLOAD RELAY

Voltage:

600 Volt

Widths:

135.4 mm

SoneparProductId:

SKU_US_70005504

Motor Logic overload relays can be stand alone devices or can be used on Type S full voltage non-reversing and reversing starters and combination starters. Motor Logic relays are ambient insensitive and self powered. Designed to protect 50/60 Hz, three phase AC motors from overloads, phase unbalance and phase loss conditions. This overload relay is immune to harmonics in the line. Switch selectable trip class. The trip free operation will help the motor from overheating. The visible trip indicator and trip test function make trouble shooting much quicker. Electrical remote reset is available. Maximum voltage rating of 600 V. Separate mount overload relays are UL listed and CSA certified. Electrical remote reset is available. This overload relay is 5.92 inches tall, 5.33 inches wide and 4.53 inches deep. Motor Logic SSOLR are UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9999AC04; 9999RR04
