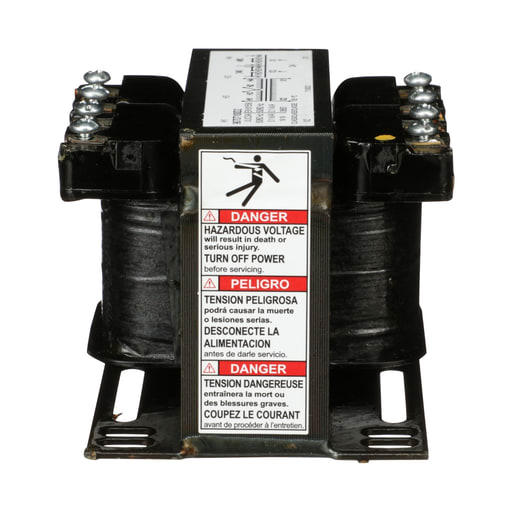

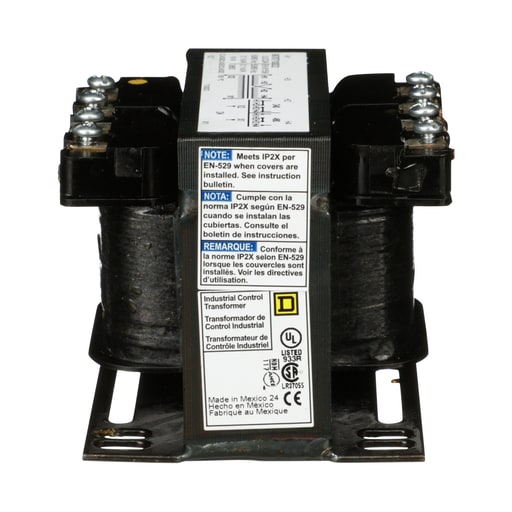

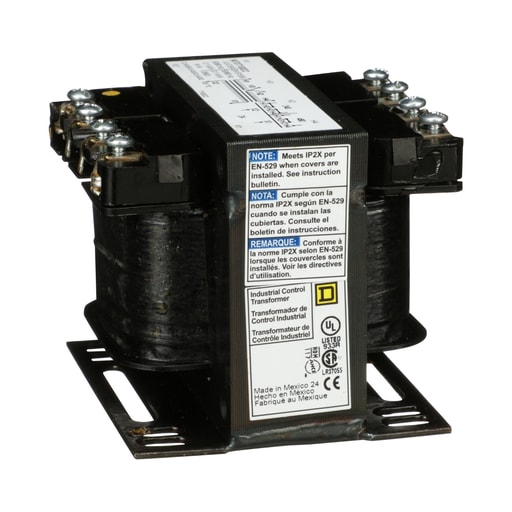

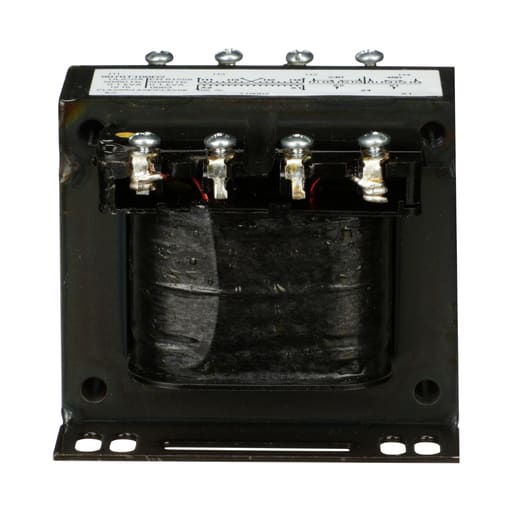

Square-D / Schneider - Square D 9070T100D2 100 VA 240 x 480 VAC Primary 24 VAC Secondary 1-Phase Control Transformer

Type T is our most popular and complete line of control transformers. They come with unmatched design innovations for top performance and is manufactured using the most advanced insulating materials. The Type T control transformer is the best choice if size and cost are of concern. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. These are only available for single voltage primary and single voltage secondary applications. Schneider Electric offers Type T and Type EO transformers in the MultiTap version. This Industrial Control Transformer has a power rating of 100VA and is 1 phase. This transformer has a 240 x 480V primary voltage and 24V secondary voltage. This transformer complies to UL, CE & CSA standards. D imensions for this product are 2.89 in (H), 3.38 in (W), 3.34 in (D). This transformer has screw clamp terminals connections. The material used for this product is copper used in the winding. This product has a compatability for FSC1. This product comes with an 18 month warranty. Prop 65: WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9070FP1; 9070FSC1; 9070FB3A; 9070FB2A; 9070SF25A; 9070SF41A; 9070FB1A
