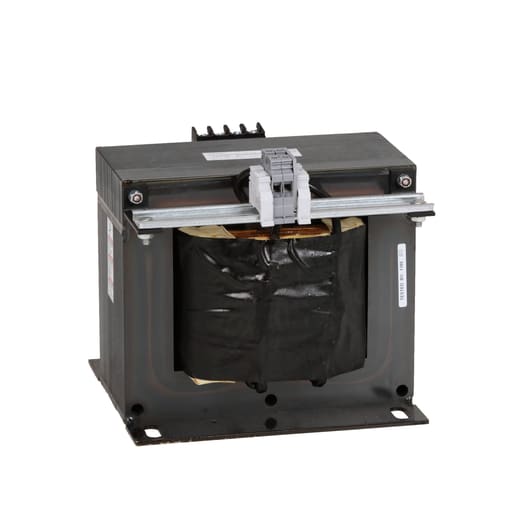

Square-D / Schneider - Square D 9070T5000D1 5000 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

CopyCopy
Square-D / Schneider - Square D 9070T5000D1 5000 VA 240 x 480 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901876113

  • Applications - FSC2

  • Catalog Number - 9070T5000D1

  • Country of Origin - Mexico

  • Depths - 9.15 Inch

Packaging

  • 1 ea

EAN

00785901876113

Part #

203924

Catalog #

9070T5000D1

Commercial reference

9070T5000D1

12-Digit UPC:

785901876113

Applications:

FSC2

Catalog Number:

9070T5000D1

Country of Origin:

Mexico

Depths:

9.15 Inch

ERP_productname:

SQD 9070T5000D1 TRANSFORMER CONTROL 5000VA 240/480V-120V

Enclosure:

NOT RATED (OPEN DEVICE)

Family Brand Name:

Square D

Heights:

8-3/4 Inch

Material:

Copper: Winding

Number of Phases:

1 Phase

Primary Voltage:

110 V

Secondary Voltage:

110 V

Tc Connection:

SCREW CLAMP

Type:

Industrial Control Transformer

Voltage:

110 Volt

Widths:

9 in

SoneparProductId:

SKU_US_70007777

The Square D™ by Schneider Electric Type T Industrial Control Transformers are designed for the global market and are the best choice when size and cost are of concern. They offer field installed accessories to expand the applicational needs for the product. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. Schneider Electric offers transformers with internally pre-wired 24-inch primary and secondary leads, instead of terminal boards, to make installation easier and faster for many applications. (The unit also supports 230x460VAC to 115VAC and 220x440VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL, UL labels, and self certified to the EN standards carrying a CE mark. Prop 65: WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9070FSC2; 9070FP1
