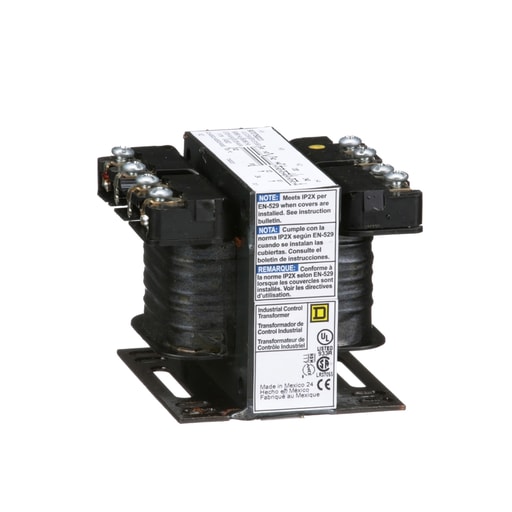

Square-D / Schneider - Square D 9070T50D23 50 VA 120 x 240 VAC Primary 24 VAC Secondary 1-Phase Control Transformer

CopyCopy
Square-D / Schneider - Square D 9070T50D23 50 VA 120 x 240 VAC Primary 24 VAC Secondary 1-Phase Control Transformer

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901904960

  • Applications - FSC1

  • Catalog Number - 9070T50D23

  • Country of Origin - Mexico

  • Depths - 3.09 Inch

Packaging

  • 1 ea

EAN

00785901904960

Part #

193163

Catalog #

9070T50D23

Commercial reference

9070T50D23

12-Digit UPC:

785901904960

Applications:

FSC1

Catalog Number:

9070T50D23

Country of Origin:

Mexico

Depths:

3.09 Inch

ERP_productname:

SQD 9070T50D23 120/240-24V CONTROL

Enclosure:

NOT RATED (OPEN DEVICE)

Family Brand Name:

Square D

Heights:

2.58 Inch

Material:

Copper: Winding

Number of Phases:

1 Phase

Primary Voltage:

24 V

Secondary Voltage:

24 V

Tc Connection:

SCREW CLAMP

Type:

T

Voltage:

24 Volt

Widths:

3 in

SoneparProductId:

SKU_US_69986277

Control power transformers from Schneider-Electric set the industry standard for design innovation and performance. A variety of designs are available to meet the diverse needs of panel builders and machinery OEMs. The versatility of our control transformer line offers unparalleled options for design engineers. This industrial control transformer has a power rating of 50VA and is 1 phase. this transformer has a 120 x 240V primary voltage and 24V secondary voltage. This transformer complies to UL, CSA, CE standards. There is an 18 month warranty on this product. Prop 65: WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9070FP1; 9070FSC1; 9070FB3A; 9070FB2A; 9070SF25A; 9070SF41A; 9070FB1A
