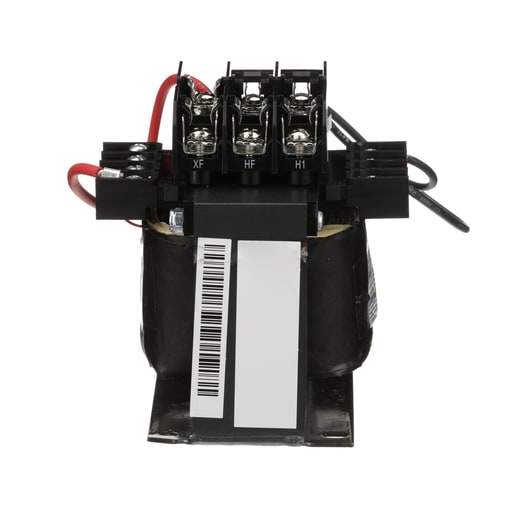

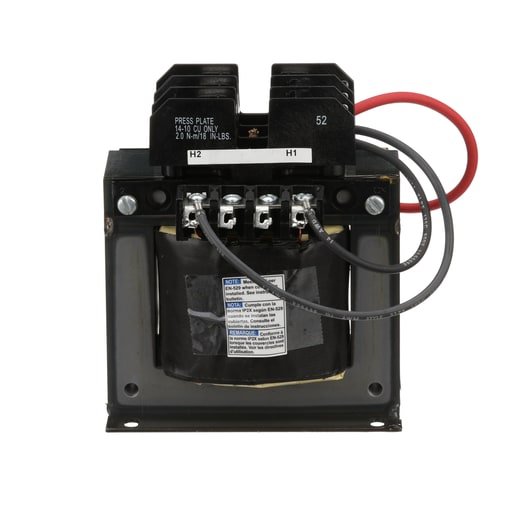

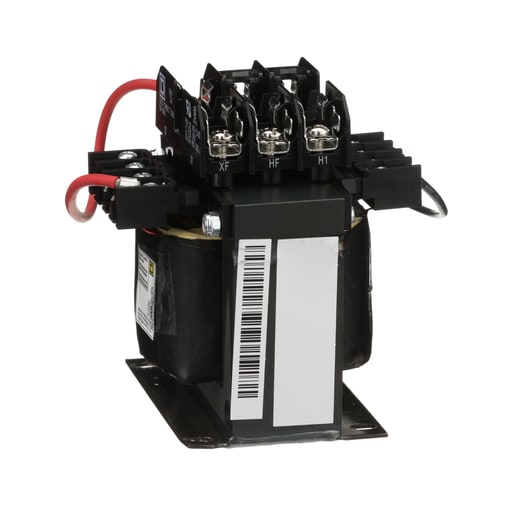

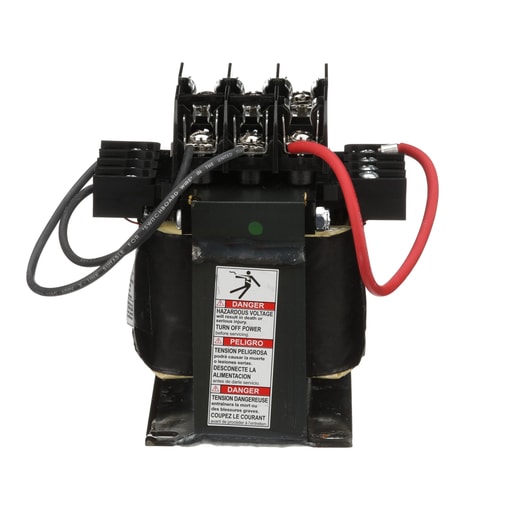

Square-D / Schneider - Square D 9070TF300D5 300 VA 600 VAC Primary 120 VAC Secondary 1-Phase Control Transformer

Type TF and EOF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. Since the fuse blocks are pre-wired and mounted on top of the transformer, the Type TF transformers have the same footprint as the Type T. This design frees up space normally used for separate fuse blocks. Type TF transformers consist of two primary fuse blocks and one secondary fuse block, a configuration that meets the majority of overcurrent needs by panel builders and machinery OEMs. This Industrial Control Transformer is 1 phase, and has a rated power of 300 VA. This transformer has a primary voltages such as 600 V and a secondary voltage of 120 V with a temperature rise of 80 .C. The dimensions for this product are 5.13 in (H), 4.5 in (W), 4.74 in (D). This product is compatable with FSC2. This product complys to UL, CSA & NOM standards. Prop 65: WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9070FSC2; 9070FP1; 9070FB3B; 9070FB2B; 9070SF41B; 9070SF25B; 9070FB1B
