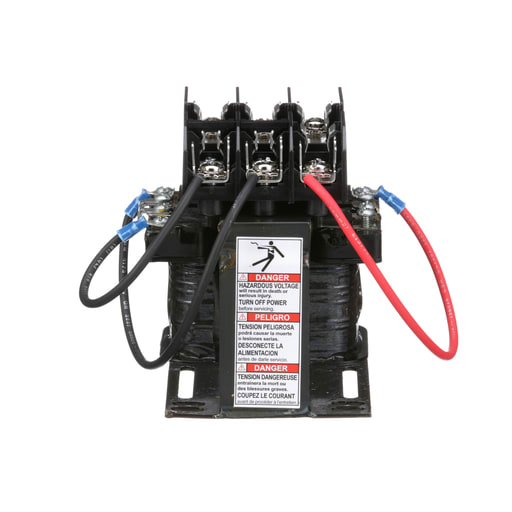

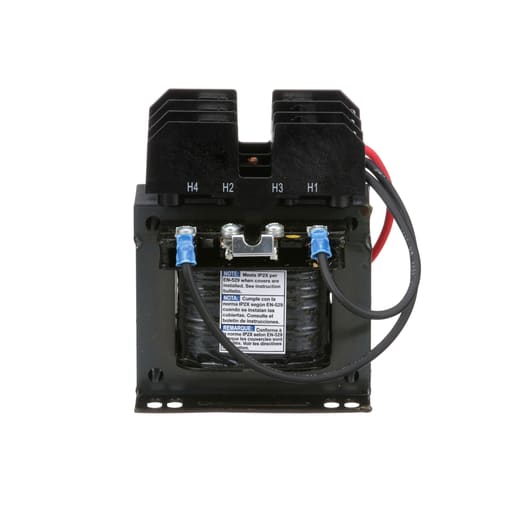

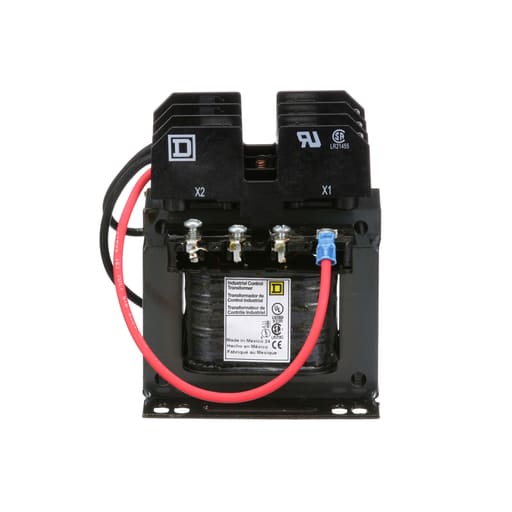

Square-D / Schneider - Square D 9070TF75D3 75 VA 208 VAC Primary 120 VAC Secondary 1-Phase Control Transformer
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901314530
Applications - FSC1
Catalog Number - 9070TF75D3
Country of Origin - USA
Depths - 3.34 Inch
Packaging
1 ea
EAN
00785901314530
Part #
204892
Catalog #
9070TF75D3
Commercial reference
9070TF75D3
12-Digit UPC:
785901314530
Applications:
FSC1
Catalog Number:
9070TF75D3
Country of Origin:
USA
Depths:
3.34 Inch
ERP_productname:
SQD 9070TF75D3 TRANSFORMER CONTROL 75VA 208V-120V
Enclosure:
OPEN
Family Brand Name:
Square D
Heights:
4.18 Inch
Material:
Copper: Winding
Number of Phases:
1 Phase
Primary Voltage:
208 V
Secondary Voltage:
120 V
Tc Connection:
SCREW CLAMP
Type:
Industrial Control Transformer
Voltage:
120 Volt
Widths:
3.38 in
SoneparProductId:
SKU_US_26409337

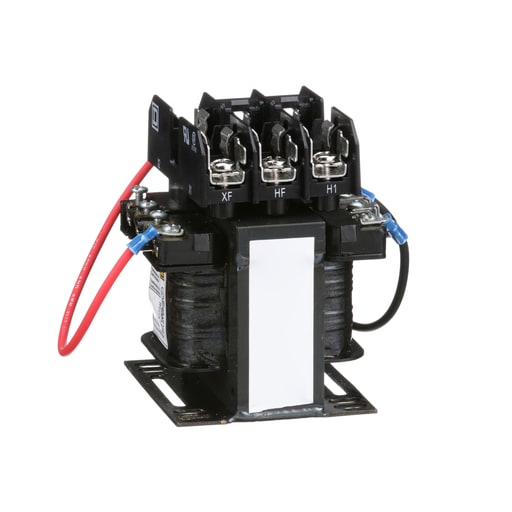

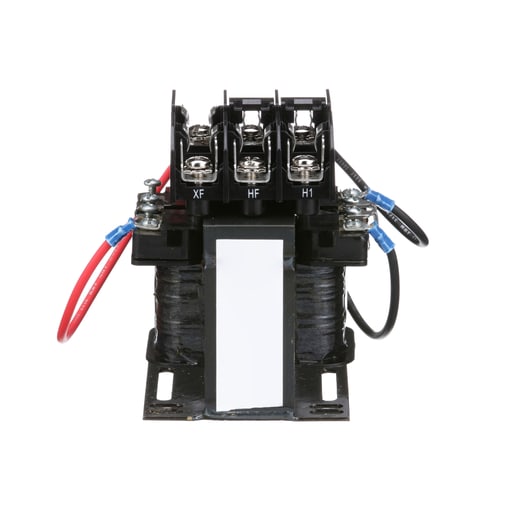

Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. They have been verified to adhere to the datasheet by the Underwriters Laboratories (UL).
