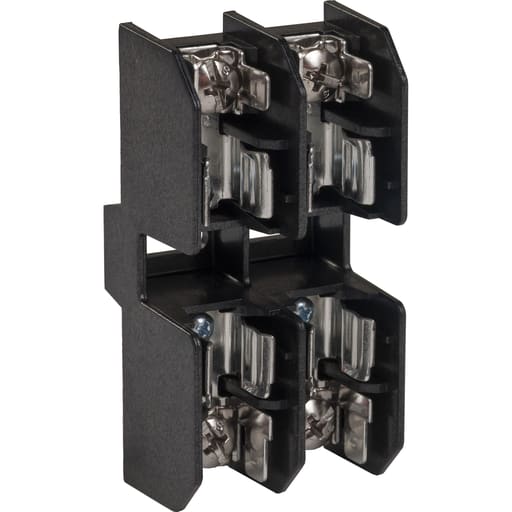

Square-D / Schneider - Square D 9080FB2611M 30 Amp 600 Volt 2-Pole Thermoplastic Class M Standard Terminal Block Fuse Holder
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901097037
Amperage - 30 Amp
Applications - 0.4063 x 1.5 in;M
Catalog Number - 9080FB2611M
Class - M
Packaging
1 ea
EAN
00785901097037
Part #
226350
Catalog #
9080FB2611M
Commercial reference
9080FB2611M
12-Digit UPC:
785901097037
Amperage:
30 Amp
Applications:
0.4063 x 1.5 in;M
Catalog Number:
9080FB2611M
Class:
M
Country of Origin:
USA
Current:
30 Amp
Depths:
1.29 Inch
ERP_productname:
SQD 9080FB2611M TERMINAL BLOCK FUSEHOLDER 600V 30A
Family Brand Name:
Square D
Heights:
3.13 Inch
Material:
Thermoplastic
Mounting Type:
Surface Mount
Number of Poles:
2 Pole
Size:
1.29 in
Tc Connection:
Pressure wire clamp
Type:
Fuse holder
Voltage:
600 Volt
Widths:
1.6 in
SoneparProductId:
SKU_US_26893948
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This two pole fuse holder will accept class M fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are standard fuse clips. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 100,000 Amp. This fuse holder is UL component recognized and CSA certified. Type S starters are UL listed and CSA certified for global applications.
