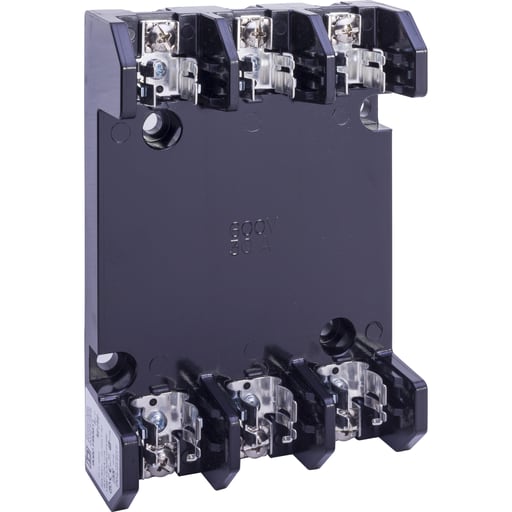

Square-D / Schneider - Square D 9080FB3611 30 Amp 600 Volt 3-Pole Phenolic Class H Standard Terminal Block Fuse Holder
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901097112
Amperage - 30 Amp
Applications - 0.8125 x 5 in;H
Catalog Number - 9080FB3611
Class - H
Packaging
1 ea
EAN
00785901097112
Part #
179673
Catalog #
9080FB3611
Commercial reference
9080FB3611
12-Digit UPC:
785901097112
Amperage:
30 Amp
Applications:
0.8125 x 5 in;H
Catalog Number:
9080FB3611
Class:
H
Country of Origin:
USA
Current:
30 Amp
Depths:
1.69 Inch
ERP_productname:
SQD 9080FB3611 30A/600V FSEHLDR
Family Brand Name:
Square D
Heights:
6-1/4 Inch
Material:
Phenolic
Mounting Type:
Surface Mount
Number of Poles:
3 Pole
Size:
1.69 in
Tc Connection:
Pressure wire clamp
Type:
Fuse holder
Voltage:
600 Volt
Widths:
4.25 in
SoneparProductId:
SKU_US_26893636
Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This three pole fuse holder will accept class H fuses. The rating of the fuse can be up to 30 Amps with a 600 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are reinforced for a better connection. The fuse holder base is made of general purpose phenolic. AIC Rating in accordance with UL512 is 10,000 Amp. This fuse holder is UL listed and CSA certified. Type S starters are UL listed and CSA certified for global applications.
