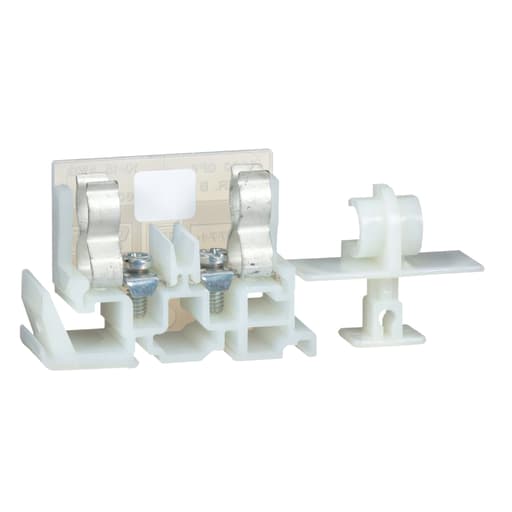

Square-D / Schneider - Square D 9080GF6 600 Volt 30 Amp 18 to 1 AWG 35 mm Din Rail Terminal Block

CopyCopy
Square-D / Schneider - Square D 9080GF6 600 Volt 30 Amp 18 to 1 AWG 35 mm Din Rail Terminal Block

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901155034

  • Amperage - 30-30 Amp UL-30-30 Amp CSA

  • Applications - 9080G,GF6B

  • Catalog Number - 9080GF6

  • Color - Natural

Packaging

  • 1 ea

EAN

00785901155034

Part #

193561

Catalog #

9080GF6

Commercial reference

9080GF6

12-Digit UPC:

785901155034

Amperage:

30-30 Amp UL-30-30 Amp CSA

Applications:

9080G,GF6B

Catalog Number:

9080GF6

Color:

Natural

Conductor Size:

18-10 AWG

Country of Origin:

Mexico

Current:

30 Amp

Depths:

3/4 Inch

ERP_productname:

SQD 9080GF6 TERMINAL BLOCK SECT

Family Brand Name:

Square D

Heights:

2.33 Inch

Material:

Nylon

Mounting Type:

35 Mm DIN Rail,9080GH Track

Size:

0.75 in

Tc Connection:

CLAMP TERMINAL ZINC PLATED STEEL 18-20 LBF.IN : AWG 18...AWG 10 COPPER),PRESSURE WIRE CLAMP

Type:

GF6B;Terminal block

Voltage:

600 Volt

Widths:

2.19 in

Wire Size:

AWG 18...AWG 10 copper

SoneparProductId:

SKU_US_69982494

Square D 2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. Starters can be locked in the Off or Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Each terminal is approved for use with various wire combinations. A variety of enclosures are available. Starters are UL Listed and CSA Certified for global applications. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9080GF6B; 9080GLP3; 9080GLP6; 9080GH112; 9080MH339; 9080MHA10; 9080GH136; 9080GH236; 9080MH220; 9080GH10; 9080MH239; 9080MH320; 9080GH63
