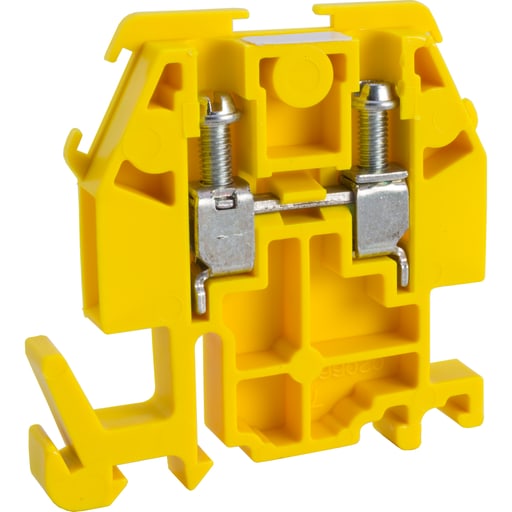

Square-D / Schneider - Square D 9080GMY6 600 Volt 30 Amp 22 to 10 AWG 35 mm Din Rail Terminal Block

Essential specifications

12-Digit UPC - 785901743231
Amperage - 30-30 Amp UL-30-30 Amp CSA
Applications - 9080G,GM6B
Catalog Number - 9080GMY6
Color - Yellow

Packaging

1 ea

EAN

00785901743231

Part #

150210

Catalog #

9080GMY6

Commercial reference

9080GMY6

12-Digit UPC:

785901743231

Amperage:

30-30 Amp UL-30-30 Amp CSA

Applications:

9080G,GM6B

Catalog Number:

9080GMY6

Color:

Yellow

Conductor Size:

22-10 AWG

Country of Origin:

Mexico

Current:

30 Amp

Depths:

0.235 Inch

ERP_productname:

SQD 9080GMY6 TERMINAL BLOCK 600V 30AMP NEMA +OPTIONS

Family Brand Name:

Square D

Heights:

1.82 Inch

Material:

Nylon

Mounting Type:

35 Mm DIN Rail,9080GH Track

Size:

0.235 in

Tc Connection:

LUG ZINC PLATED STEEL 7-8 LBF.IN : AWG 22...AWG 10 COPPER),ZINC PLATED STEEL BOX LUGS

Type:

GM6B;Terminal block

Voltage:

600 Volt

Widths:

1.72 in

Wire Size:

AWG 22...AWG 10 copper

SoneparProductId:

SKU_US_26325270

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #10 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 # 10 AWG, 1 #12 AWG, 1 #14 AWG, 1 or 2 #16 AWG, 1 or 2 #18 AWG, 1 to 5 #20 AWG or 1 to 8 #22 AWG wires. The nylon block is molded in yellow. This block is UL component recognized and CSA certified for up to 30 ampere up to 600 VAC or VDC.
