Square-D / Schneider - Square D 9080GR6T 600 Volt 60 Amp 22 to 8 AWG 35 mm Din Rail Terminal Block

Essential specifications

12-Digit UPC - 785901000778
Amperage - 60-60 Amp UL-60-60 Amp CSA
Applications - 9080G,GM6B
Catalog Number - 9080GR6T
Color - Natural

Packaging

1 ea

EAN

00785901000778

Part #

144686

Catalog #

9080GR6T

Commercial reference

9080GR6T

12-Digit UPC:

785901000778

Amperage:

60-60 Amp UL-60-60 Amp CSA

Applications:

9080G,GM6B

Catalog Number:

9080GR6T

Color:

Natural

Conductor Size:

22-8 AWG

Country of Origin:

Mexico

Current:

60 Amp

Depths:

0.35 Inch

ERP_productname:

SQD 9080GR6T TERM BLCK W/ TEST PROBE, 600V 60A DISCONTINUED

Family Brand Name:

Square D

Heights:

1.82 Inch

Material:

Nylon

Mounting Type:

35 Mm DIN Rail,9080GH Track

Size:

0.35 IN,1.72 IN,1.82 IN

Tc Connection:

COPPER BOX LUGS,LUG COPPER 18-20 LBF.IN : AWG 22...AWG 8 COPPER)

Type:

GM6B,TERMINAL BLOCK,TERMINAL BLOCK STANDARD WITH TEST PROBE ADAPTER

Voltage:

600 Volt

Widths:

1.72 in

Wire Size:

AWG 22...AWG 8 COPPER

SoneparProductId:

SKU_US_26781955

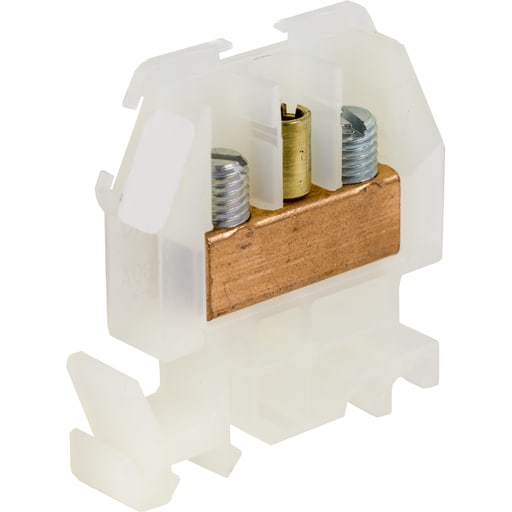

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in the natural color of nylon (off white). This 9080GR6 terminal block has an adapter added to accept a banana test plug to assist in trouble shoot a control circuit. This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC.
