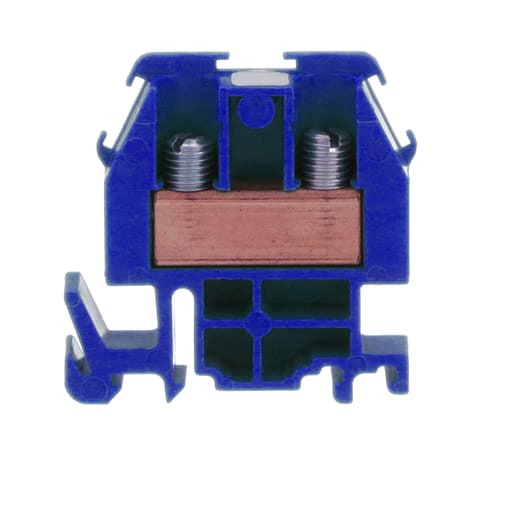

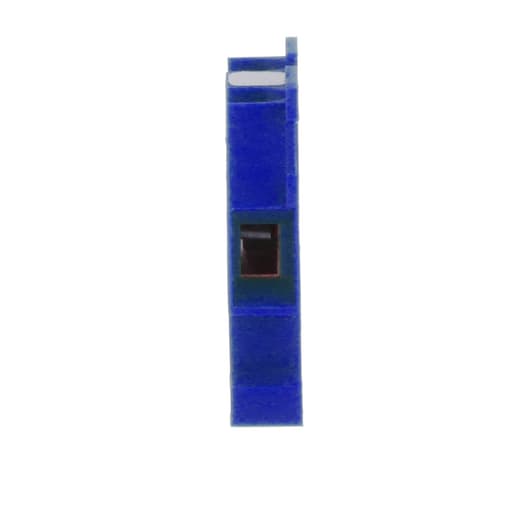

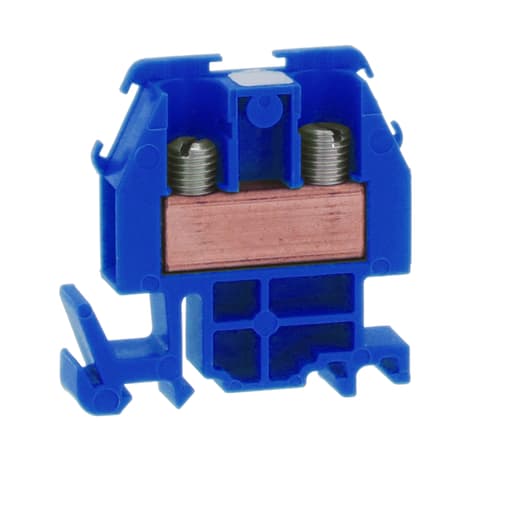

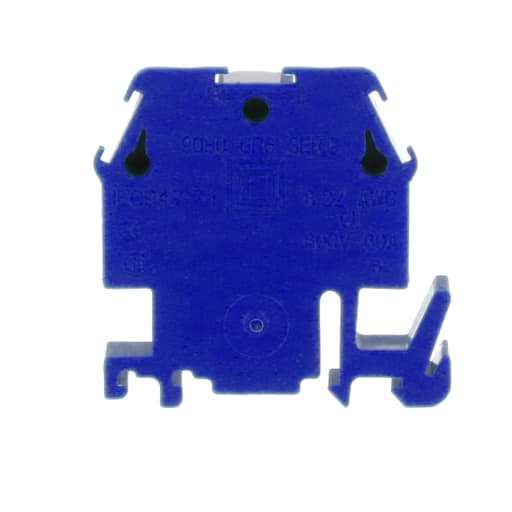

Square-D / Schneider - Square D 9080GRL6 600 Volt 60 Amp 22 to 8 AWG 35 mm Din Rail Terminal Block

Linergy NEMA sectional terminal blocks are for terminating wires in a control panel and are designed to NEMA standards. This terminal block has a box lug connector for use with solid or stranded copper wires from #22 through #8 AWG. Each box lug terminal is approved for use with various wire combinations. Each lug accepts 1 #8 AWG, 1 # 10 AWG, 1 or 3 #12 AWG, 1 or 4 #14 AWG, 1 to 4 #16 AWG, 1 to 5 #18 AWG, 1 to 8 #20 AWG or 1 to 10 #22 AWG wires. The nylon block is molded in blue. This block is UL component recognized and CSA certified for up to 60 ampere and up to 600 VAC or VDC. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9080GM6B; 9080GH72; 9080GH73; 9080MH339; 9080MHA10; 9080GH136; 9080GH236; 9080GH10; 9080GH62; 9080GH220; 9080GH60
