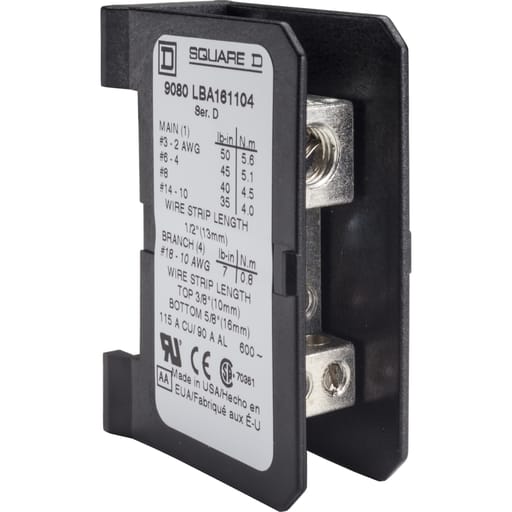

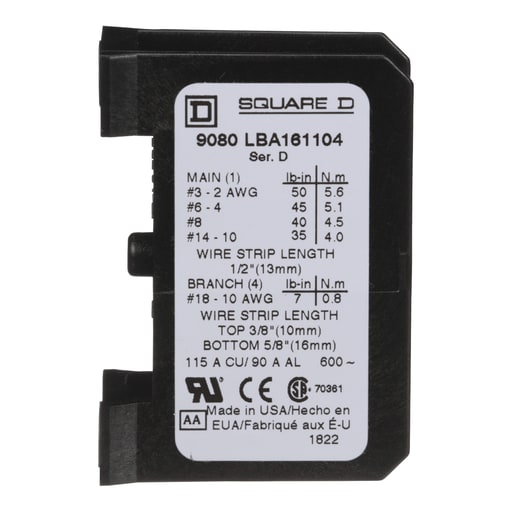

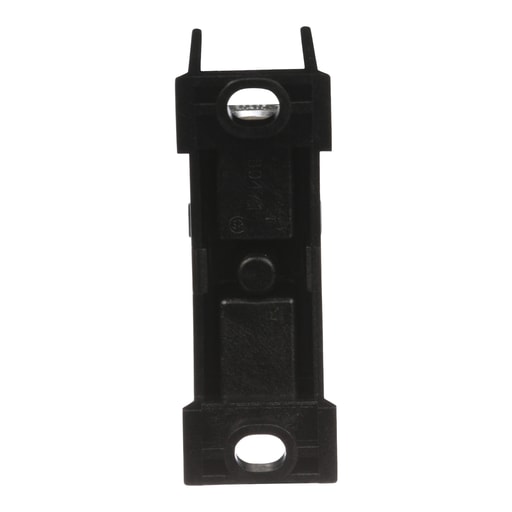

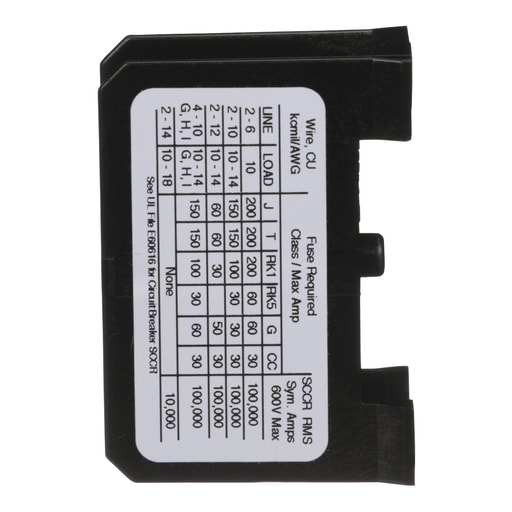

Square-D / Schneider - Square D 9080LBA161104 115 Amp 600 Volt 14 to 2 AWG Primary Thermoplastic 1-Pole Miniature Power Distribution Block

12-Digit UPC:

785901097280

Amperage:

115-115 Amp COPPER-90-90 Amp ALUMINIUM

Applications:

9080LB,9080LB11

Catalog Number:

9080LBA161104

Conductor Size:

14-2 AWG/18-10 AWG

Country of Origin:

USA

Current:

115 Amp

Depths:

1.62 Inch

ERP_productname:

SQD 9080LBA161104 BLOCK

Family Brand Name:

Square D

Heights:

2.29 Inch

Material:

Thermoplastic: Block

Mounting Type:

Surface Mount

Number of Poles:

1 Pole

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Size:

1.62 in

Tc Connection:

LINE LUG 50 LBF.IN AWG 3...AWG 2 COPPER OR ALUMINIUM-LINE LUG 45 LBF.IN AWG 6...AWG 4 COPPER OR ALUMINIUM-LINE LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 14 COPPER-LOAD LUG 7 LBF.IN AWG 18...AWG 10 COPPER,TIN PLATED ALUMINIUM LUGS

Type:

9080LB11;Miniature Power Distribution Block

Voltage:

600 Volt

Widths:

0.85 in

Wire Size:

Line 1, AWG 14...AWG 2, copper or aluminium;Load 4, AWG 18...AWG 10, copper or aluminium

SoneparProductId:

SKU_US_25432932
