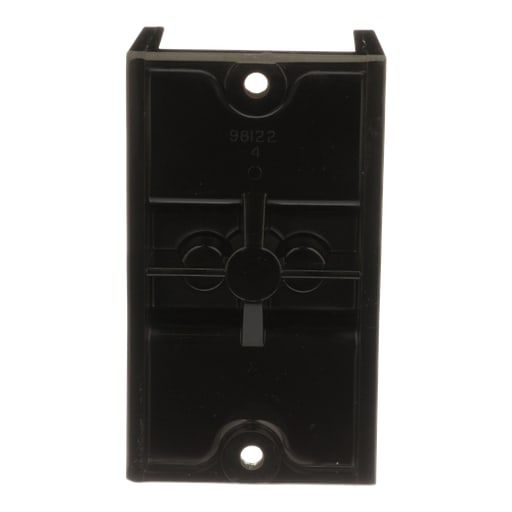

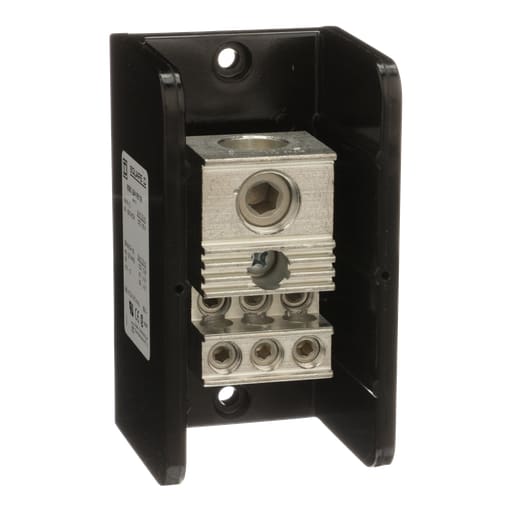

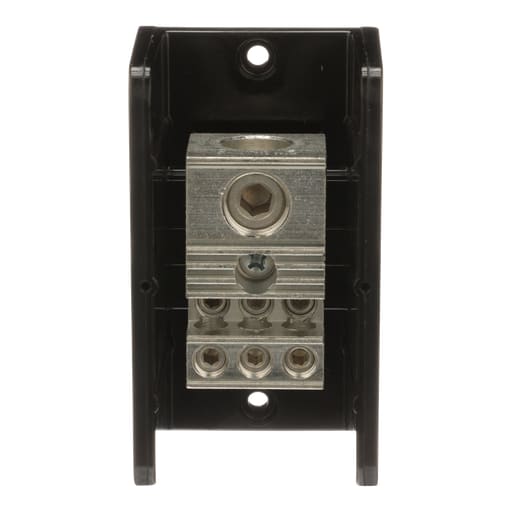

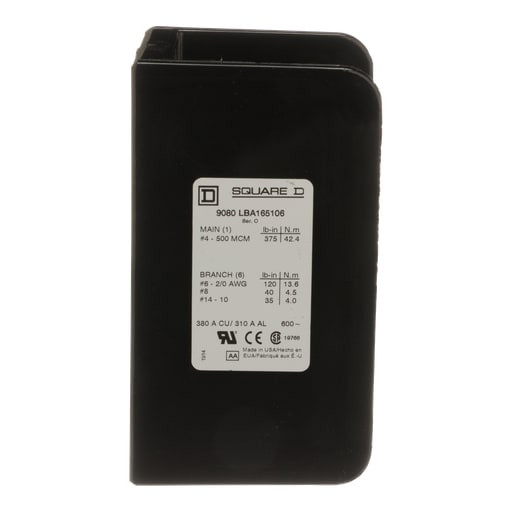

Square-D / Schneider - Square D 9080LBA165106 380 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 1-Pole Standard Power Distribution Block

12-Digit UPC:

785901097372

Amperage:

380-380 Amp COPPER-310-310 Amp ALUMINIUM

Applications:

9080LB,9080LB51

Catalog Number:

9080LBA165106

Conductor Size:

4 AWG-500 kcmil/14-2/0 AWG

Country of Origin:

USA

Current:

310 Amp

Depths:

3.13 Inch

ERP_productname:

SQD 9080LBA165106 POWER DISTRIBUTION BLOCK 600V 380A

Family Brand Name:

Square D

Heights:

5-1/2 Inch

Material:

Phenolic

Mounting Type:

Surface Mount

Number of Poles:

1 Pole

Short Circuit Current:

65 kA

Size:

3.13 in

Tc Connection:

LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER OR ALUMINIUM-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

9080LB51;Power Distribution Block

Voltage:

600 Volt

Widths:

3.17 in

Wire Size:

Line 1, AWG 4...500 kcmil, copper or aluminium;Load 6, AWG 14...AWG 2/0, copper or aluminium

SoneparProductId:

SKU_US_26893597
