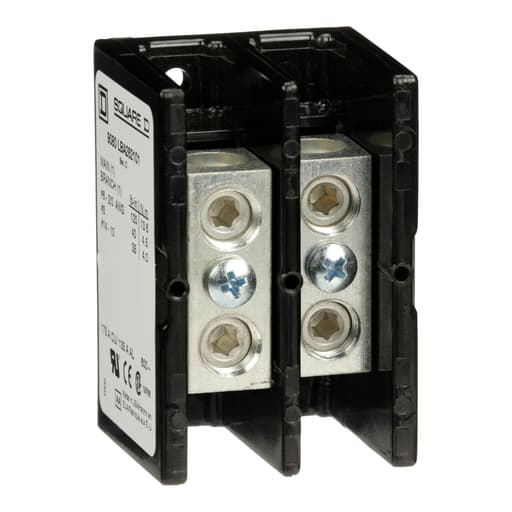

Square-D / Schneider - Square D 9080LBA262101 600 Volt 175 Amp Power Distribution Block

12-Digit UPC:

785901156963

Amperage:

175-175 Amp COPPER-135-135 Amp ALUMINIUM

Applications:

9080LB,9080LB22

Catalog Number:

9080LBA262101

Conductor Size:

14-2/0 AWG

Country of Origin:

USA

Current:

135 Amp

Depths:

1.78 Inch

ERP_productname:

SQD 9080LBA262101 POWER DISTRIBUTION BLOCK 600V 175A

Family Brand Name:

Square D

Heights:

2.88 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

2 Pole

Size:

1.78 in

Tc Connection:

LINE LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 14 COPPER-LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LOAD LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

9080LB22;Power Distribution Block

Voltage:

600 Volt

Widths:

1.94 in

Wire Size:

Line 2, AWG 14...AWG 2/0, copper or aluminium;Load 1, AWG 14...AWG 2/0, copper or aluminium
