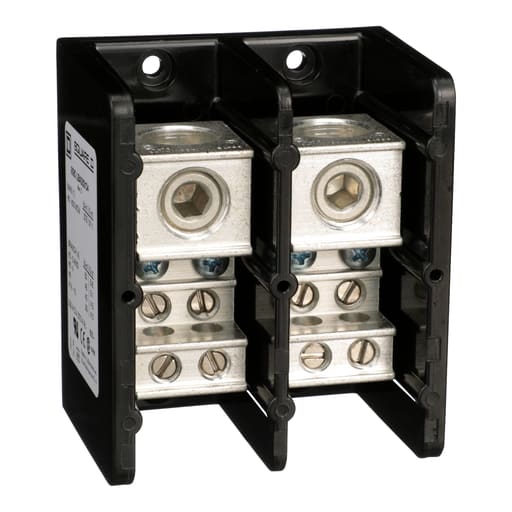

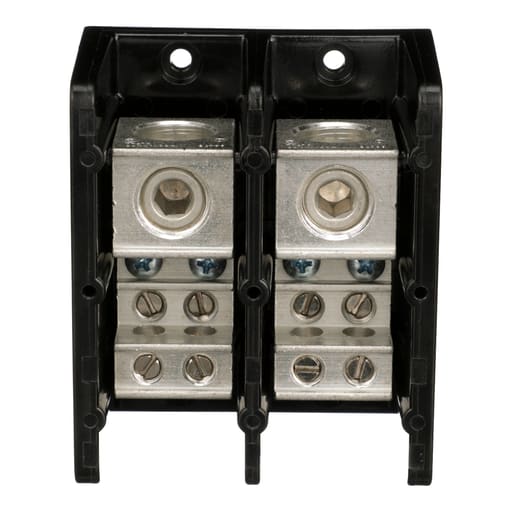

Square-D / Schneider - Square D 9080LBA263104 335 Amp 600 Volt 6 AWG to 400 MCM Primary Phenolic 2-Pole Standard Power Distribution Block

12-Digit UPC:

785901156994

Amperage:

335-335 Amp COPPER-270-270 Amp ALUMINIUM

Applications:

9080LB,9080LB32

Catalog Number:

9080LBA263104

Conductor Size:

14-2 AWG/6 AWG-400 kcmil

Country of Origin:

USA

Current:

270 Amp

Depths:

2.61 Inch

ERP_productname:

SQD 9080LBA263104 POWER DISTRIBUTION BLOCK 600V 335A T-LB

Family Brand Name:

Square D

Heights:

3.38 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

2 Pole

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Size:

1.94 IN,2.61 IN,3.38 IN

Tc Connection:

LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER OR ALUMINIUM-LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14 COPPER-LINE LUG 275 LBF.IN AWG 6...350 KCMIL COPPER OR ALUMINIUM-LOAD LUG 50 LBF.IN AWG 2 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 12...AWG10 COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

9080LB32,POWER DISTRIBUTION BLOCK

Voltage:

600 Volt

Widths:

1.94 in

Wire Size:

Load 1, AWG 14...AWG 2, copper or aluminium;Line 4, AWG 6...400 kcmil, copper or aluminium

SoneparProductId:

SKU_US_26437517
