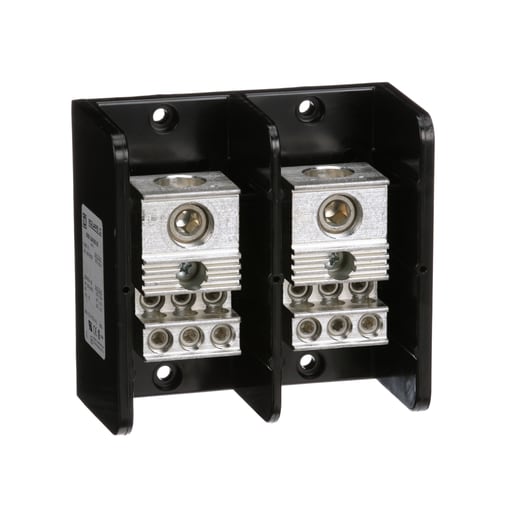

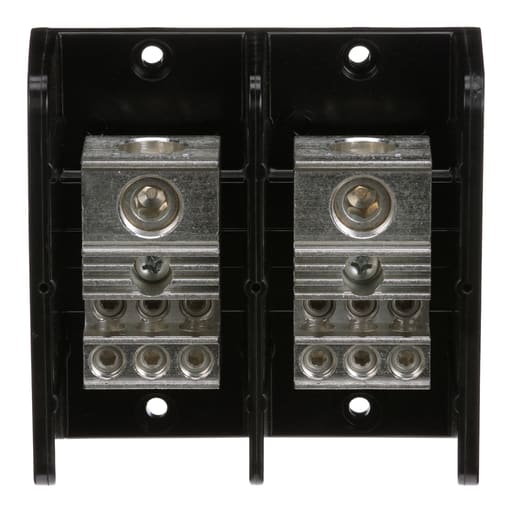

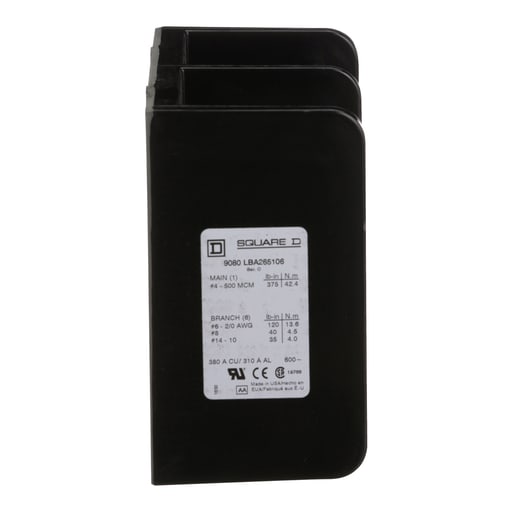

Square-D / Schneider - Square D 9080LBA265106 380 Amp 600 Volt 4 AWG to 500 kcmil Primary Phenolic 2-Pole Standard Power Distribution Block

12-Digit UPC:

785901157038

Amperage:

380-380 Amp COPPER-310-310 Amp ALUMINIUM

Applications:

9080LB,9080LB52

Catalog Number:

9080LBA265106

Conductor Size:

14-2/0 AWG/4 AWG-500 kcmil

Country of Origin:

USA

Current:

310 Amp

Depths:

3.13 Inch

ERP_productname:

SQD 9080LBA265106 POWER DISTRIBUTION BLOCK 600V 380A T-LB

Family Brand Name:

Square D

Heights:

5-1/2 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

2 Pole

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Size:

3.13 in

Tc Connection:

LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER OR ALUMINIUM-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

9080LB52;Power Distribution Block

Voltage:

600 Volt

Widths:

3.17 in

Wire Size:

Load 1, AWG 14...AWG 2/0, copper or aluminium;Line 6, AWG 4...500 kcmil, copper or aluminium
