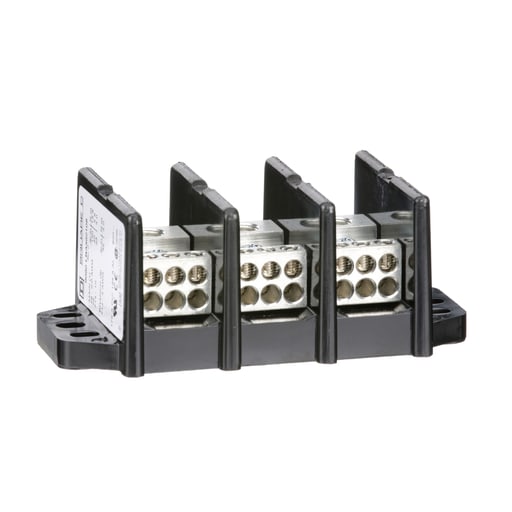

Square-D / Schneider - Square D 9080LBA362106 600 Volt 175 Amp Power Distribution Block

Essential specifications

12-Digit UPC - 785901132615
Amperage - 175-175 Amp COPPER-135-135 Amp ALUMINIUM
Applications - 9080LB
Catalog Number - 9080LBA362106
Conductor Size - 14-2/0 AWG/14-4 AWG

Packaging

1 ea

EAN

00785901132615

Part #

194001

Catalog #

9080LBA362106

Commercial reference

9080LBA362106

12-Digit UPC:

785901132615

Amperage:

175-175 Amp COPPER-135-135 Amp ALUMINIUM

Applications:

9080LB

Catalog Number:

9080LBA362106

Conductor Size:

14-2/0 AWG/14-4 AWG

Country of Origin:

USA

Current:

135 Amp

Depths:

2.06 Inch

ERP_productname:

SQD 9080LBA362106 PWR DIST BLOCK

Family Brand Name:

Square D

Heights:

2.9 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

3 Pole

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Size:

2.06 IN,2.9 IN,5.38 IN

Tc Connection:

LINE LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 14...AWG 10 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14...AWG 4 COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

POWER DISTRIBUTION BLOCK

Voltage:

600 Volt

Widths:

5.38 in

Wire Size:

Line 2, AWG 14...AWG 2/0, copper or aluminium;Load 6, AWG 14...AWG 4, copper or aluminium

SoneparProductId:

SKU_US_69987206

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #14 to 2/0 copper or aluminum wires. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 175 amperes with copper wire and 135 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of high impact thermoplastic. These Linergy power distribution blocks are UL component recognized and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9080LB23
