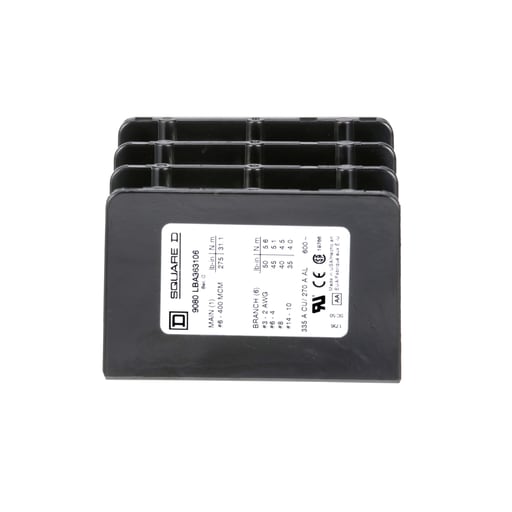

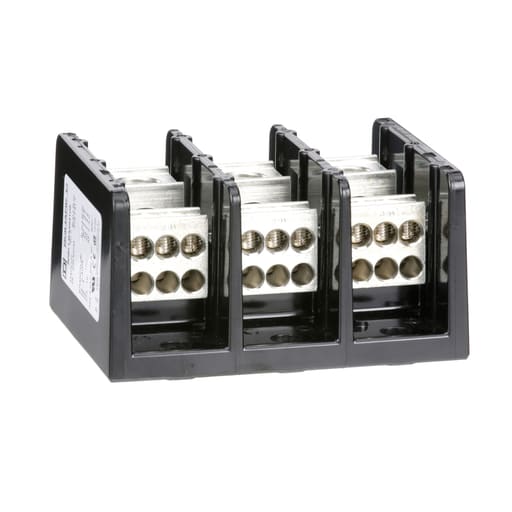

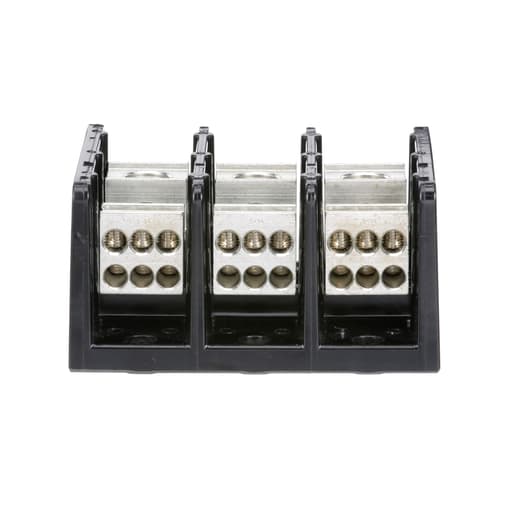

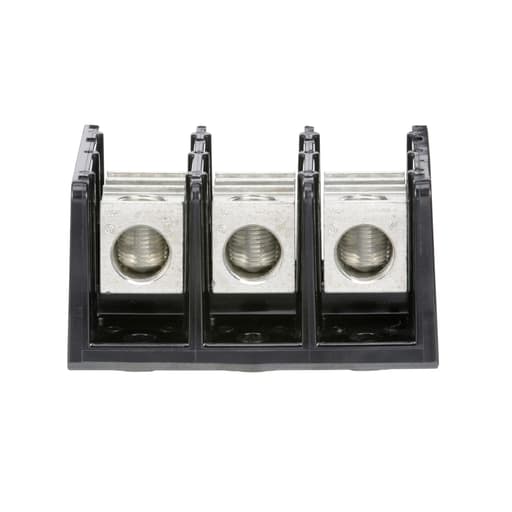

Square-D / Schneider - Square D 9080LBA363106 600 Volt 335 Amp Power Distribution Block

12-Digit UPC:

785901097471

Amperage:

335-335 Amp COPPER-270-270 Amp ALUMINIUM

Applications:

9080LB,9080LB33

Catalog Number:

9080LBA363106

Conductor Size:

6 AWG-400 kcmil/14-2 AWG

Country of Origin:

USA

Current:

270 Amp

Depths:

2.91 Inch

ERP_productname:

SQD 9080LBA363106 PWR DIST BLOCK

Family Brand Name:

Square D

Heights:

4-3/4 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

3 Pole

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Size:

2.91 in

Tc Connection:

LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER OR ALUMINIUM-LOAD LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 14 COPPER-LOAD LUG 50 LBF.IN AWG 2 COPPER OR ALUMINIUM-LOAD LUG 35 LBF.IN AWG 12...AWG10 COPPER OR ALUMINIUM-LINE LUG 375 LBF.IN AWG 6...400 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS

Type:

9080LB33;Power Distribution Block

Voltage:

600 Volt

Widths:

6.03 in

Wire Size:

Line 1, AWG 6...400 kcmil, copper or aluminium;Load 6, AWG 14...AWG 2, copper or aluminium
