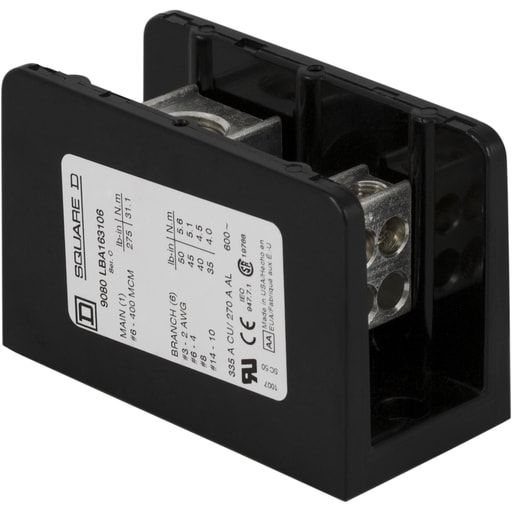

Square-D / Schneider - Square D 9080LBC163106 380 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 1-Pole Standard Power Distribution Block

Essential specifications

12-Digit UPC - 785901097617
Amperage - 380-380 Amp COPPER
Applications - 9080LB,9080LB31
Catalog Number - 9080LBC163106
Conductor Size - 4 AWG-500 kcmil/14-2 AWG

Packaging

1 ea

EAN

00785901097617

Part #

109922

Catalog #

9080LBC163106

Commercial reference

9080LBC163106

12-Digit UPC:

785901097617

Amperage:

380-380 Amp COPPER

Applications:

9080LB,9080LB31

Catalog Number:

9080LBC163106

Conductor Size:

4 AWG-500 kcmil/14-2 AWG

Country of Origin:

USA

Current:

380 Amp

Depths:

2.61 Inch

ERP_productname:

SQD 9080LBC163106 PWR DISTR BLK 600V 380A

Family Brand Name:

Square D

Heights:

4 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

1 Pole

Size:

1 1/2 in

Tc Connection:

LOAD LUG 40 LBF.IN AWG 8 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER-LOAD LUG 50 LBF.IN AWG 2 COPPER-LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER,TIN PLATED COPPER LUGS

Type:

9080LB31;Power Distribution Block

Voltage:

600 Volt

Widths:

1.94 in

Wire Size:

Line 6, AWG 4...500 kcmil, copper;Load 1, AWG 14...AWG 2, copper

SoneparProductId:

SKU_US_26102900

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and six lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 500 kcmil copper wire. The load side lug is rated to accept one #14 to #2 copper wire. The lugs are made of copper. The lugs are rated for 300 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9080LB31
