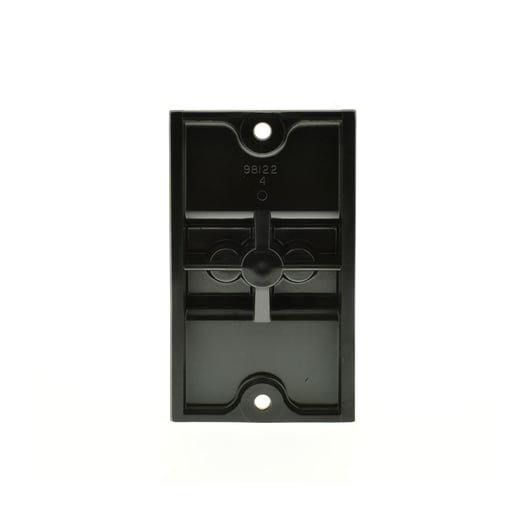

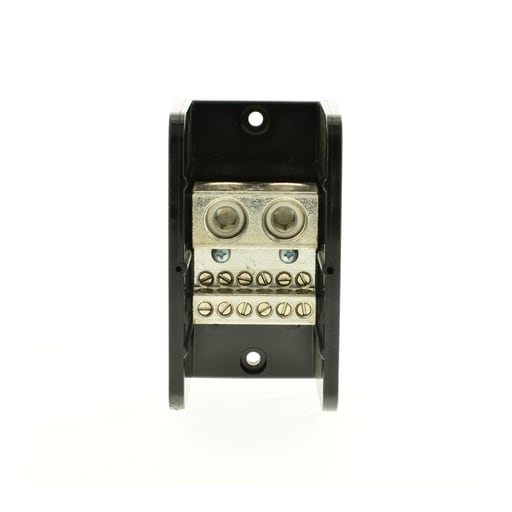

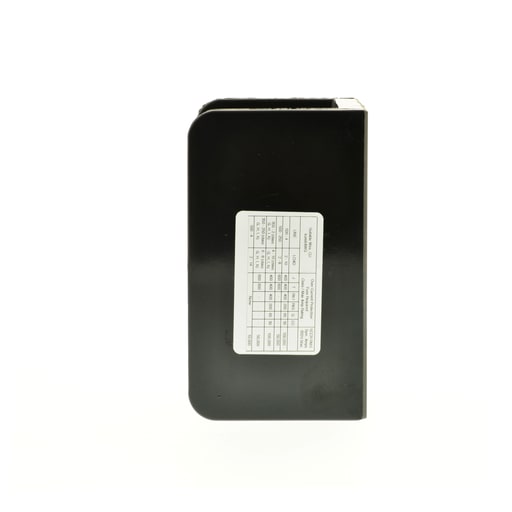

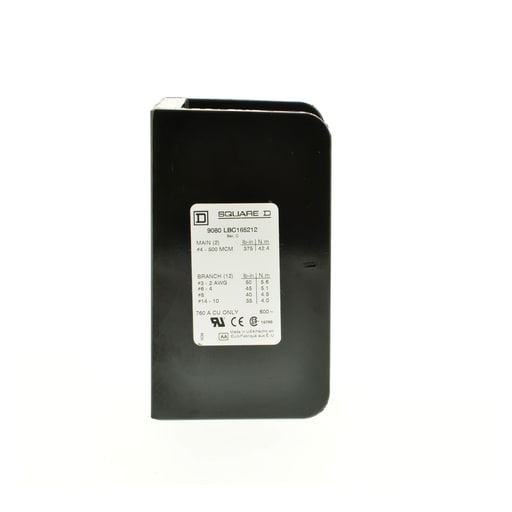

Square-D / Schneider - Square D 9080LBC165212 760 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 1-Pole Standard Power Distribution Block

12-Digit UPC:

785901097648

Amperage:

760-760 Amp COPPER

Applications:

9080LB,9080LB51

Catalog Number:

9080LBC165212

Conductor Size:

4 AWG-500 kcmil/14-2 AWG

Country of Origin:

USA

Current:

760 Amp

Depths:

3.13 Inch

ERP_productname:

SQD 9080LBC165212 PWR DISTR BLK 600V 760A

Family Brand Name:

Square D

Heights:

5-1/2 Inch

Material:

Phenolic

Mounting Type:

Surface Mount

Number of Poles:

1 Pole

Size:

3.13 in

Tc Connection:

LOAD LUG 40 LBF.IN AWG 8 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER-LOAD LUG 50 LBF.IN AWG 2 COPPER-LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER,TIN PLATED COPPER LUGS

Type:

9080LB51;Power Distribution Block

Voltage:

600 Volt

Widths:

3.17 in

Wire Size:

Line 2, AWG 4...500 kcmil, copper;Load 12, AWG 14...AWG 2, copper

SoneparProductId:

SKU_US_26893505
