Square-D / Schneider - Square D 9080LBC365212 760 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 3-Pole Standard Power Distribution Block

Essential specifications

12-Digit UPC - 785901097709
Amperage - 760-760 Amp COPPER
Applications - 9080LB,9080LB53
Catalog Number - 9080LBC365212
Conductor Size - 4 AWG-500 kcmil/14-2 AWG

Packaging

1 ea

EAN

00785901097709

Part #

220412

Catalog #

9080LBC365212

Commercial reference

9080LBC365212

12-Digit UPC:

785901097709

Amperage:

760-760 Amp COPPER

Applications:

9080LB,9080LB53

Catalog Number:

9080LBC365212

Conductor Size:

4 AWG-500 kcmil/14-2 AWG

Country of Origin:

USA

Current:

760 Amp

Depths:

3.13 Inch

ERP_productname:

SQD 9080LBC365212 POWER DISTRIBUTION BLOCK 600V 760A

Family Brand Name:

Square D

Heights:

5-1/2 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

3 Pole

Size:

3.13 in

Tc Connection:

LOAD LUG 40 LBF.IN AWG 8 COPPER-LOAD LUG 35 LBF.IN AWG 14...AWG 10 COPPER-LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER-LOAD LUG 50 LBF.IN AWG 2 COPPER-LOAD LUG 45 LBF.IN AWG 6...AWG 4 COPPER,TIN PLATED COPPER LUGS

Type:

9080LB53;Power Distribution Block

Voltage:

600 Volt

Widths:

3.17 in

Wire Size:

Line 2, AWG 4...500 kcmil, copper;Load 12, AWG 14...AWG 2, copper

SoneparProductId:

SKU_US_26633720

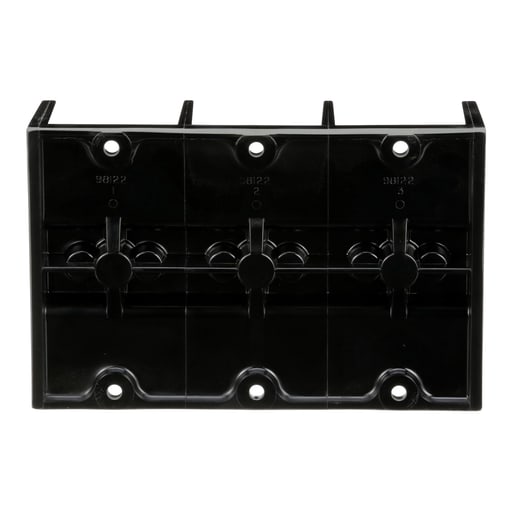

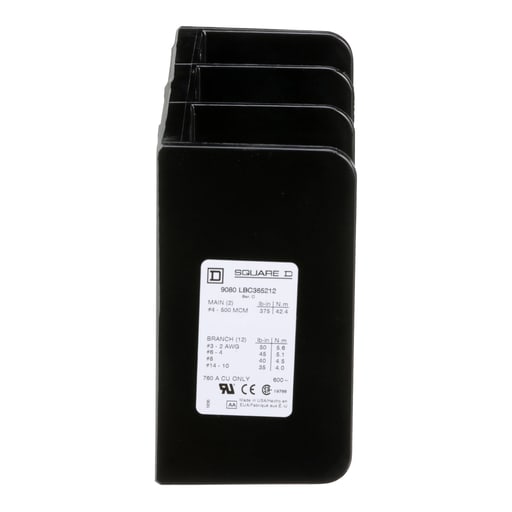

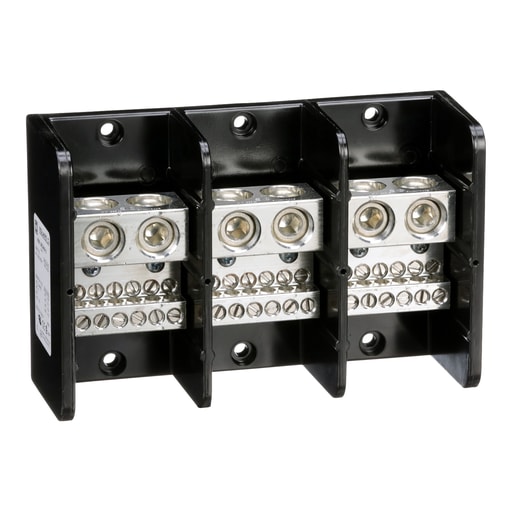

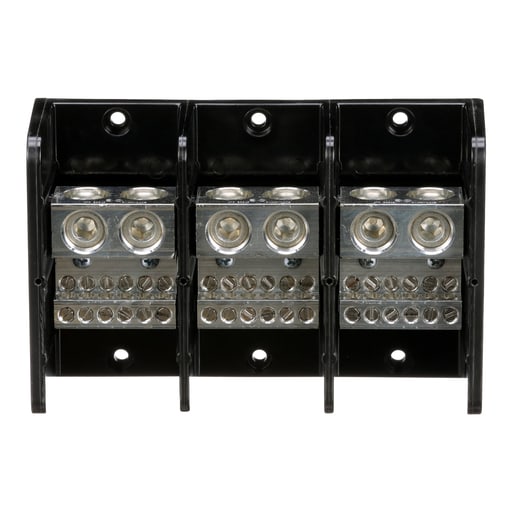

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has two lug openings on the line (main) side and twelve lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper wire. The load side lug is rated to accept one #14 to 2 copper wire. The lugs are made of copper. The lugs are rated for 760 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9080LB53
