Square-D / Schneider - Square D 9422ATF12 200 Amp Flange Mounting Switch

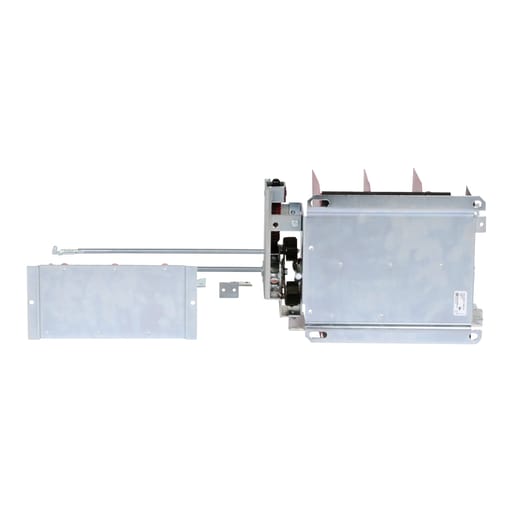

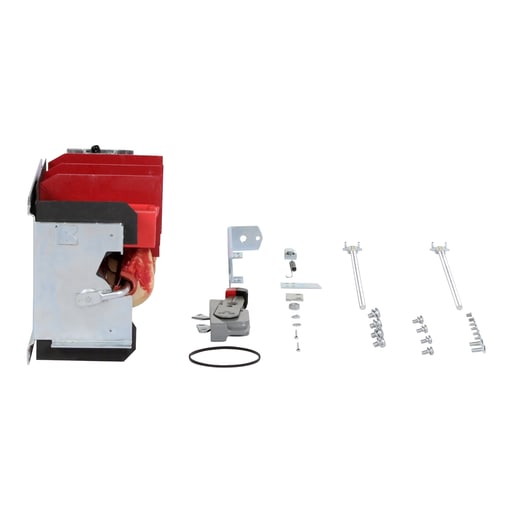

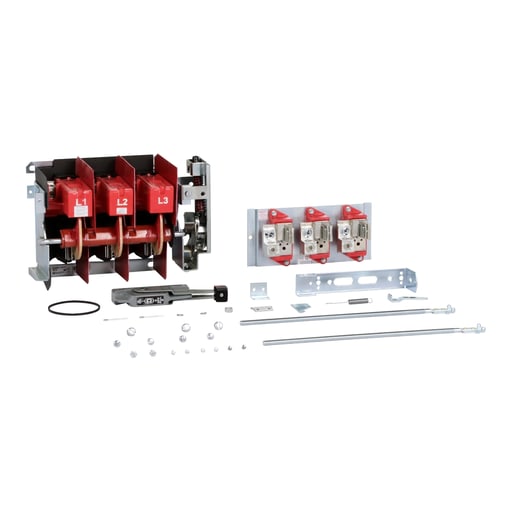

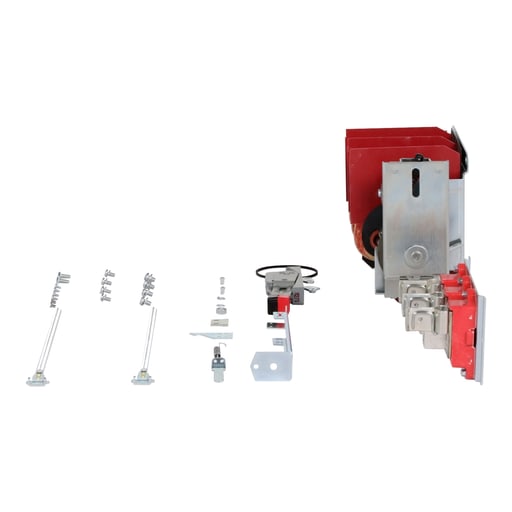

Type T disconnect switches are designed for variable depth, flange-mounting applications. These switches are fully compatible with 9422 handle operators and 9423 door closing mechanisms. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This 200A disconnect switch and operating mechanism has 40 HP at 200 VAC, 60 HP at 230 Vac, 125 HP at 460 VAC and 150 HP at 575 VAC. Fuse clip ratings of 200A are for Classh, J, K and R fuses only. This overpacked disconnect switch and operating mechanism includes a 9422A1 handle mechanism. Disconenct switch is UL component recognized and CSA certified. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Spare Part Products: 9422TF2; 9422A1
