Square-D / Schneider - Square D 9422BTCN30 600 VAC 30 Amp NEMA Disconnect Switch

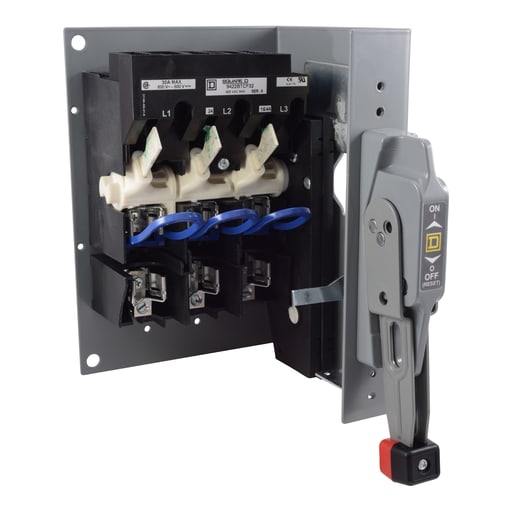

Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch is without fuse clips. This bracket mount mount disconnect switch is rated at 30 A. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. Disconnect switch lugs are rated for #14 AWG to #2 AWG copper or aluminum wire. Disconect switch is UL component recognized and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
