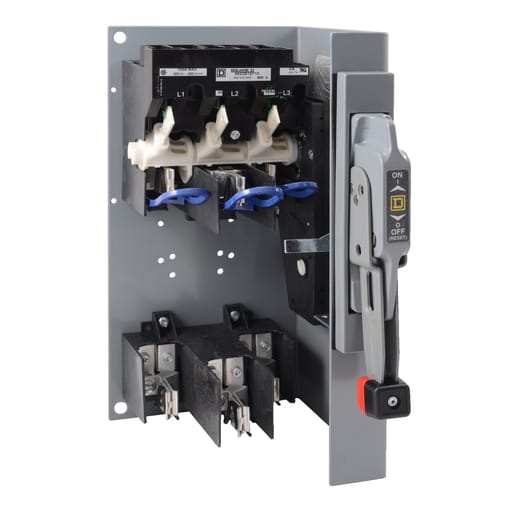

Square-D / Schneider - Square D 9422BTEF11 NEMA 600 VAC 100 Amp Disconnect Switch

Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class J fuses only. It has a rating of 100 Amps up to 600 V. This bracket mount mount disconnect switch is rated at 100 A. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 600 VDC. Disconnect switch lugs are rated for #10 AWG to #0 AWG copper wire and #6 AWG to #0 AWG aluminum wire. Switch is UL component recognized and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
