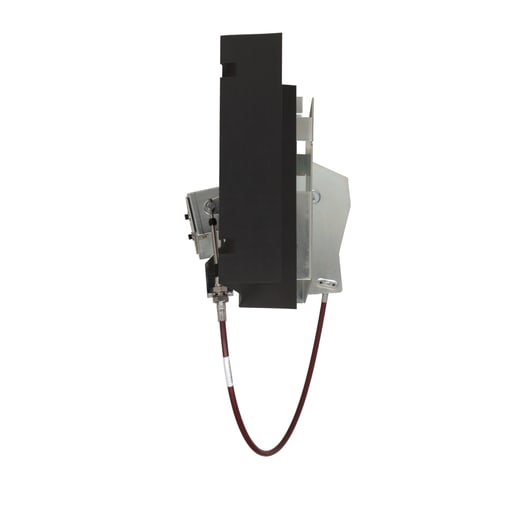

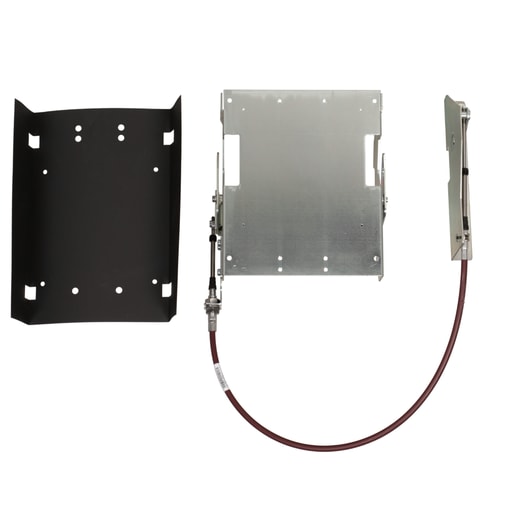

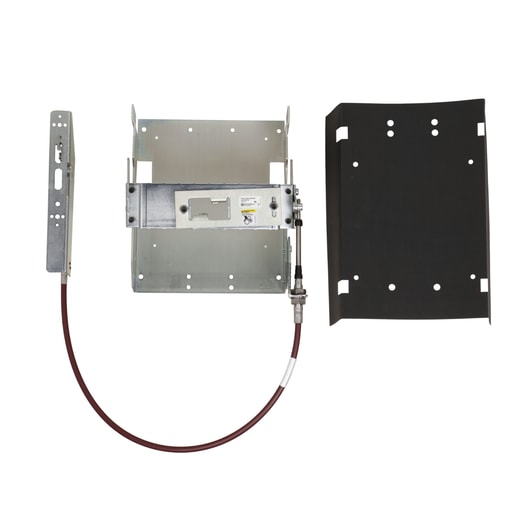

Square-D / Schneider - Square D 9422CMP40 NEMA Cable Operating Mechanism

Essential specifications

12-Digit UPC - 785901665359
Actuator - 9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage - 1200A MAX
Applications - SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 36 INCHES
Catalog Number - 9422CMP40

Packaging

1 ea

EAN

00785901665359

Part #

265227

Catalog #

9422CMP40

Commercial reference

9422CMP40

12-Digit UPC:

785901665359

Actuator:

9422 TYPE A HANDLE (PURCHASE SEPARATELY)

Amperage:

1200A MAX

Applications:

SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 36 INCHES

Catalog Number:

9422CMP40

Circuit Breaker Type:

PowerPact M Or P 3

Country of Origin:

Mexico

ERP_productname:

SQD 9422CMP40 DISCONNECT MECHANISM, CIRCUIT BREAKER, CABLE OPERATED, 150/250A, 3 POLE, POWERPACT M, P BREAKER, 48 INCH CABLE

Enclosure:

FLANGED

Family Brand Name:

Square D

Number of Poles:

3 Pole

Size:

1200A FRAME SIZE

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

DIRECT

Trip Type:

POWERPACT M AND P FRAME CIRCUIT BREAKERS (3-POLE) 1200A

Type:

Single Cable Operating Mechanism

SoneparProductId:

SKU_US_27133865

PowerPacT M, P, and R-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This flexible cable mechanism is for use with PowerPacT M and P circuit breakers. It has a 40 inch length cable mechanism. This product complies with UL standards. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9422A1; 9422A1Y; 9422A2; 9422A3; 9422A4; 9422RB1; 9422RM1; 9422RQ1; 9422RS1; MGA36300; MGA36400; MGA36500; MGA36600; MGA36700; MGA36800; MGL36300; MGL36400; MGL36500; MGL36600; MGL36700; MGL36800
