Square-D / Schneider - Square D 9422CSF30 NEMA Cable Operating Mechanism

Essential specifications

12-Digit UPC - 785901353263
Actuator - 9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage - 250 Amp
Applications - SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 36 INCHES
Catalog Number - 9422CSF30

Packaging

1 ea

EAN

00785901353263

Part #

192364

Catalog #

9422CSF30

Commercial reference

9422CSF30

12-Digit UPC:

785901353263

Actuator:

9422 TYPE A HANDLE (PURCHASE SEPARATELY)

Amperage:

250 Amp

Applications:

SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 36 INCHES

Catalog Number:

9422CSF30

Circuit Breaker Type:

MG-NSF 2,MG-NSF 3,PowerPact H Or J 2,PowerPact H Or J 3

Country of Origin:

Mexico

ERP_productname:

SQD 9422CSF30 CABLE MECHANISM

Enclosure:

FLANGED

Family Brand Name:

Square D

Number of Poles:

2-3 Pole

Size:

250A FRAME SIZE

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

DIRECT

Trip Type:

MG-NSF OR POWERPACT H AND J FRAME CIRCUIT BREAKERS (2 OR 3-POLE) 250A

Type:

Single Cable Operating Mechanism

SoneparProductId:

SKU_US_25605469

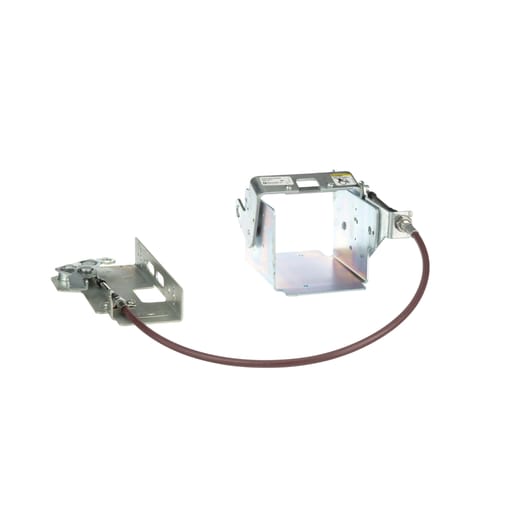

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with Compact NSF, PowerPacT H and PowerPacT J circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has a 36 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9422A1; 9422A1Y; 9422A2; 9422A3; 9422A4; 9422RB1; 9422RM1; 9422RQ1; 9422RS1; HDA36020; HDA36030; HDA36050; HDA36060; HDA36070; HDA36080; HDA36090; HDA36100; HDA36110; JGL36200; JGL36225; JGL36250; JJL36200; JJL36250
