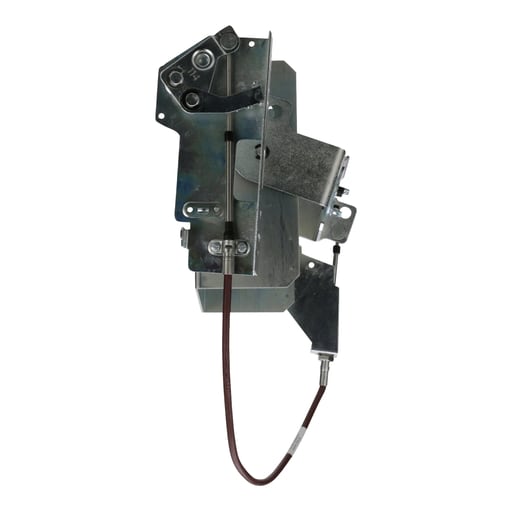

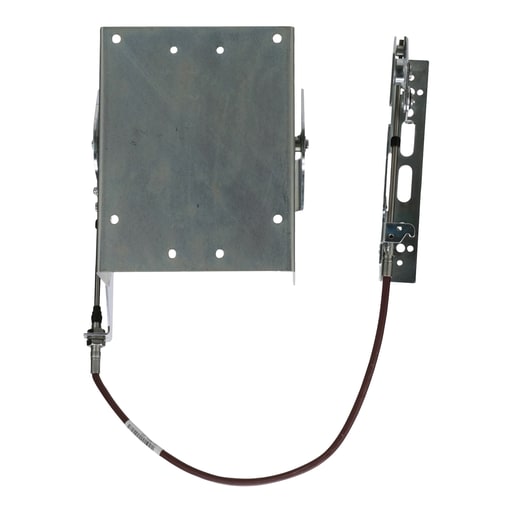

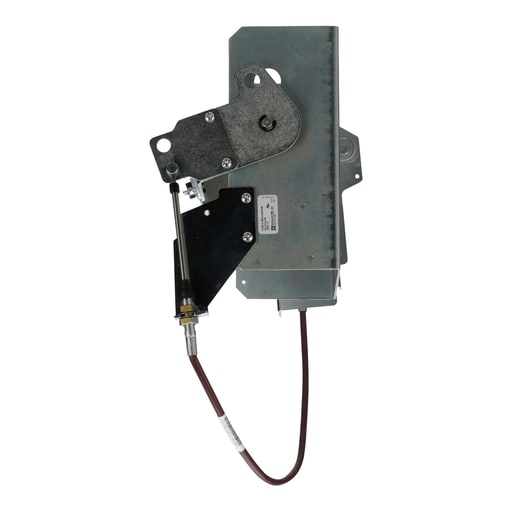

Square-D / Schneider - Square D 9422CSJ30 NEMA Cable Operating Mechanism

Essential specifications

12-Digit UPC - 785901230694
Actuator - 9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage - 600 Amp
Applications - SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 36 INCHES
Catalog Number - 9422CSJ30

Packaging

1 ea

EAN

00785901230694

Part #

172593

Catalog #

9422CSJ30

Commercial reference

9422CSJ30

12-Digit UPC:

785901230694

Actuator:

9422 TYPE A HANDLE (PURCHASE SEPARATELY)

Amperage:

600 Amp

Applications:

SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 36 INCHES

Catalog Number:

9422CSJ30

Circuit Breaker Type:

MG-NSJ 3,PowerPact D 3

Country of Origin:

Mexico

ERP_productname:

SQD 9422CSJ30 CB CABLE OPERATOR

Enclosure:

FLANGED

Family Brand Name:

Square D

Number of Poles:

3 Pole

Size:

600A FRAME SIZE

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

DIRECT

Trip Type:

MG-NSJ OR POWERPACT D FRAME CIRCUIT BREAKERS (3-POLE) 600A

Type:

Single Cable Operating Mechanism

SoneparProductId:

SKU_US_27133764

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with PowerPacT D, PowerPacT L and MG-NSJ circuit breakers. Circuit breakers is 3 pole with a frame size of 600 A. This mechanism has a 36 inch long cable. 9422A1 operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9422A1; 9422A1Y; 9422A2; 9422A3; 9422A4; 9422RB1; 9422RM1; 9422RQ1; 9422RS1; LDL36250U31X; LDL36400U31X; LDL36400U33X; LDL36600U31X; LGL36250U31X; LGL36400U31X; LGL36400U33X; LGL36600U31X; LJA36250U31X; LJA36400U31X; LJA36400U33X; LJA36600U31X
