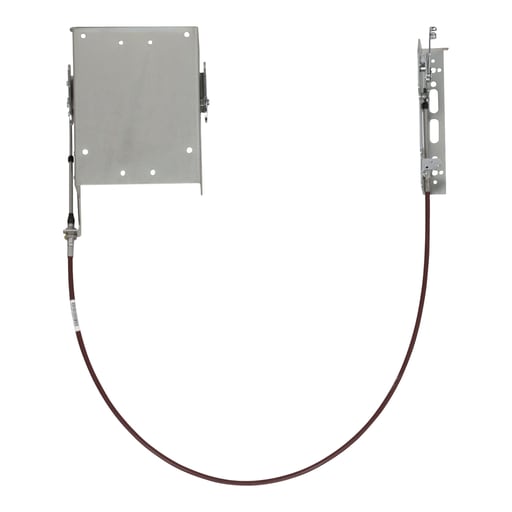

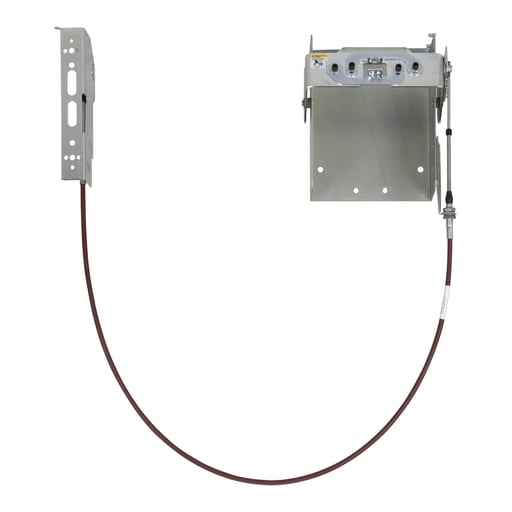

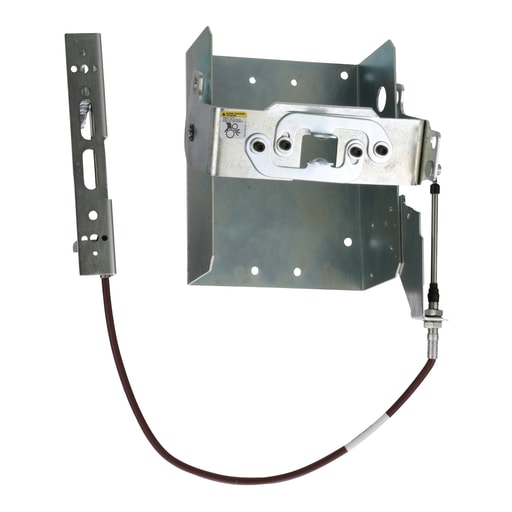

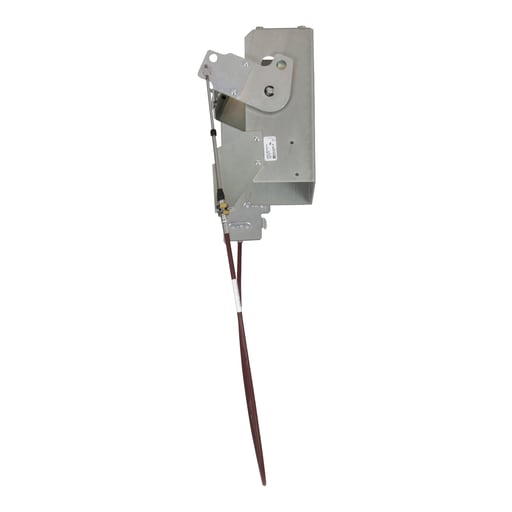

Square-D / Schneider - Square D 9422CSJ50 60 Inch Cable 3-Pole 600 Amp Circuit Breaker Cable Operating Mechanism

Essential specifications

12-Digit UPC - 785901120698
Actuator - 9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage - 600 Amp
Applications - SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 60 INCHES
Catalog Number - 9422CSJ50

Packaging

1 ea

EAN

00785901120698

Part #

165056

Catalog #

9422CSJ50

Commercial reference

9422CSJ50

12-Digit UPC:

785901120698

Actuator:

9422 TYPE A HANDLE (PURCHASE SEPARATELY)

Amperage:

600 Amp

Applications:

SINGLE CABLE OPERATING MECHANISM FOR CIRCUIT BREAKERS 60 INCHES

Catalog Number:

9422CSJ50

Circuit Breaker Type:

MG-NSJ 3,PowerPact D 3

Country of Origin:

Mexico

ERP_productname:

SQD 9422CSJ50 OPERATING MECHANISM CABLE MECHANISM NEMA

Enclosure:

FLANGED

Family Brand Name:

Square D

Number of Poles:

3 Pole

Size:

600A FRAME SIZE

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

DIRECT

Trip Type:

MG-NSJ OR POWERPACT D FRAME CIRCUIT BREAKERS (3-POLE) 600A

Type:

Single Cable Operating Mechanism

SoneparProductId:

SKU_US_25465568

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with PowerPacT D, PowerPacT L and MG-NSJ circuit breakers. This mechanism can be used with 600A 4 pole PowerPacT D, 600A 4 pole PowerPacT L and 600A 4 pole MG-NSJ circuit breakers. This mechanism has a 60 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9422A1; 9422A1Y; 9422A2; 9422A3; 9422A4
