Square-D / Schneider - Square D 9422RN1 600 VAC 100 Amp NEMA Operating Mechanism

Essential specifications

12-Digit UPC - 785901742531
Actuator - 9422 TYPE A HANDLE (PURCHASE SEPARATELY)
Amperage - 100 Amp
Applications - ROD OPERATED - VARIABLE DEPTH/FLANGE MOUNTED
Catalog Number - 9422RN1

Packaging

1 ea

EAN

00785901742531

Part #

146398

Catalog #

9422RN1

Commercial reference

9422RN1

12-Digit UPC:

785901742531

Actuator:

9422 TYPE A HANDLE (PURCHASE SEPARATELY)

Amperage:

100 Amp

Applications:

ROD OPERATED - VARIABLE DEPTH/FLANGE MOUNTED

Catalog Number:

9422RN1

Circuit Breaker Type:

FAL/FHL 2,FAL/FHL 3

Country of Origin:

Mexico

ERP_productname:

SQD 9422RN1 OPERATING MECHANISM 600VAC 100AMP NEMA

Family Brand Name:

Square D

Mounting Type:

Flange Rod Variable Depth

Number of Poles:

2-3 Pole

Size:

100A FRAME SIZE

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

DIRECT

Trip Type:

FAL/FHL CIRCUIT BREAKERS (2 OR 3-POLE) 100A

Type:

CIRCUIT BREAKER MECHANISM

SoneparProductId:

SKU_US_30601659

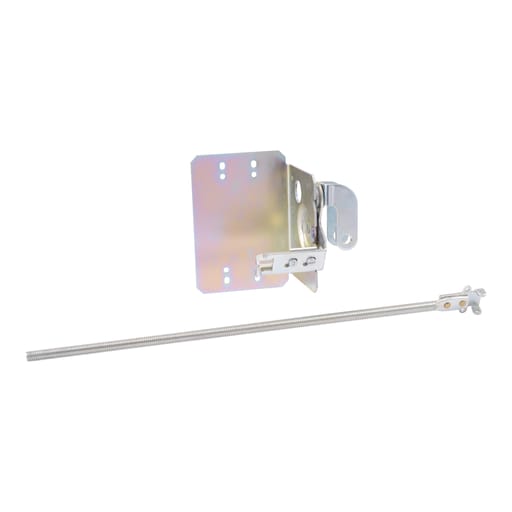

This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This mechanism is for a 2 or 3 pole FAL, FCL or FHL circuit breaker with a 100A frame size. The variable depth mounting range is 5.38 to 17.75 inches. Handle mechanism must be ordered separately. A 9422A1 or a 9422A2 handle mechanisms is normally used Operating mechanism is UL Component Recognized and CSA certified
