Square-D / Schneider - Square D 9422TD63 31 to 60 Amp 600 VAC Class H/J/K/R Disconnect Switch Fuse Clip Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901858461
Amperage - 60 Amp
Applications - 15 HP 200 V AC-15 HP 230 V AC-30 HP 460 V AC-50 HP 575 V AC-10 HP 250 V DC
Catalog Number - 9422TD63
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901858461
Part #
195081
Catalog #
9422TD63
Commercial reference
9422TD63
12-Digit UPC:
785901858461
Amperage:
60 Amp
Applications:
15 HP 200 V AC-15 HP 230 V AC-30 HP 460 V AC-50 HP 575 V AC-10 HP 250 V DC
Catalog Number:
9422TD63
Country of Origin:
Mexico
Current:
60 Amp
ERP_productname:
SQD 9422TD63 FUSE CLIP KIT 60A
Family Brand Name:
Square D
Handle Type:
Ordered separately
Sub Brand:
SQUARE D
Type:
Non-fusible disconnect switch;Disconnect Switch
SoneparProductId:
SKU_US_26795285

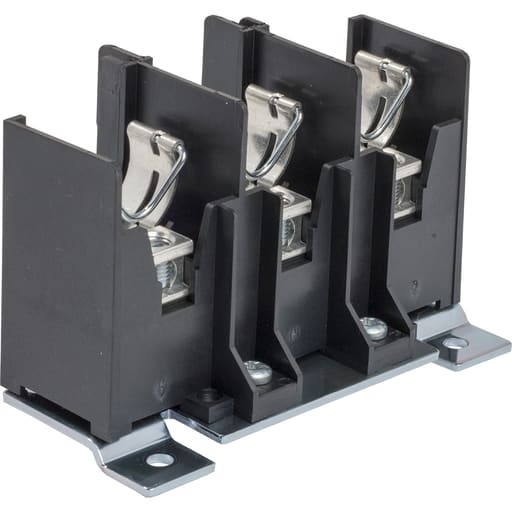

9422ATCF disconnect switches are designed for control panel installations. These disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This replacement fuse clip kit is for 9422TDN60 flange mounted variable depth discoonect switches. This fuse clip kit will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 600 V. This 60 A disconnect switch is designed for flange mounting. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
