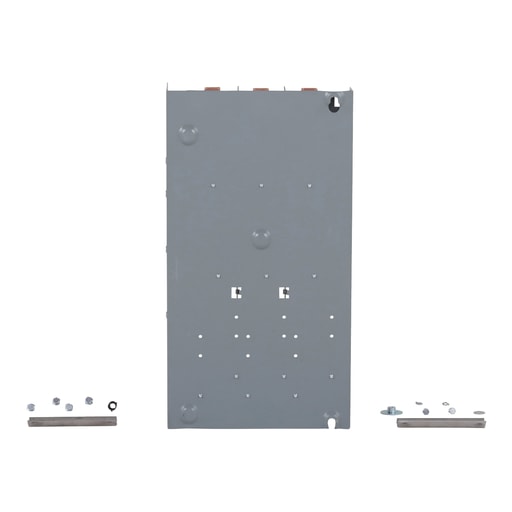

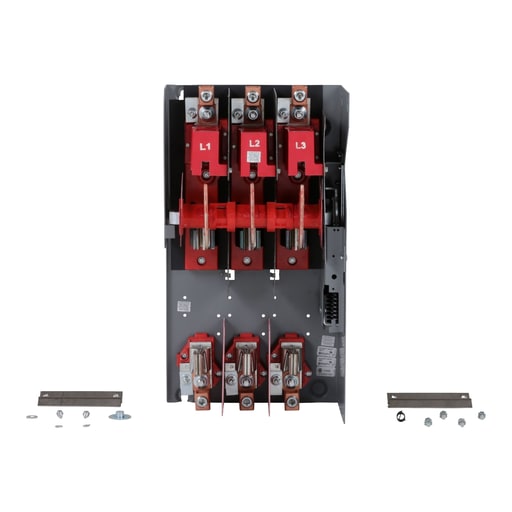

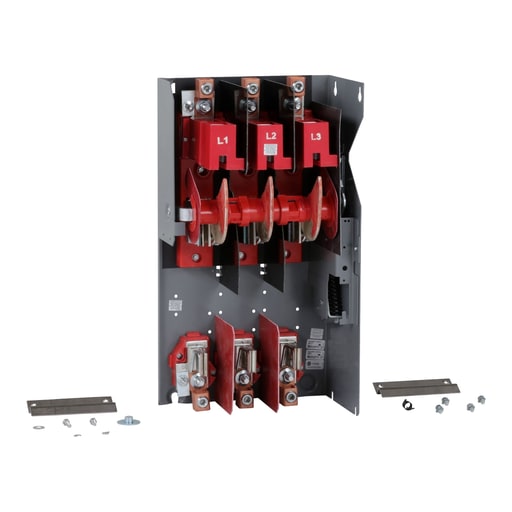

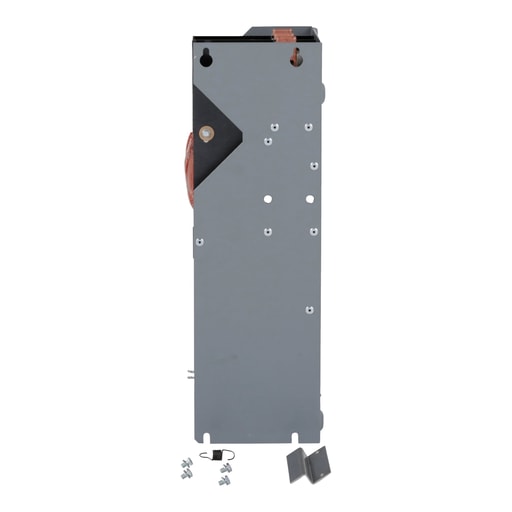

Square-D / Schneider - Square D 9422TG2 400 Amp 600 VAC NEMA Disconnect Switch

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. This 400 A disconnect switch is designed for right flange mounting. This 400 A disconnect switch is designed for flange mounting. The variable depth mounting range is 11.38 inches. Disconnect switch has horsepower ratings of 75 HP at 208 VAC, 125 HP at 240 VAC, 250 HP at 480 VAC and 350 HP at 600 VAC. Switch is also rated for 50 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch is UL Component Recognized and CSA certified Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9422A7; 9422A8
