Square-D / Schneider - Square D 9991SDA11 8.13 x 9.28 x 15 Inch NEMA 12 Contactor/Starter Enclosure
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901853220
Applications - CONTACTOR AND STARTER
Catalog Number - 9991SDA11
Country of Origin - Mexico
Depths - 9.28 Inch
Packaging
1 ea
EAN
00785901853220
Part #
195772
Catalog #
9991SDA11
Commercial reference
9991SDA11
12-Digit UPC:
785901853220
Applications:
CONTACTOR AND STARTER
Catalog Number:
9991SDA11
Country of Origin:
Mexico
Depths:
9.28 Inch
ERP_productname:
SQD 9991SDA11 NEMA-12 ENCL
Family Brand Name:
Square D
Heights:
16 Inch
NEMA Size:
2
Size:
9.29 in
Type:
Enclosure
Widths:
8.13 in
SoneparProductId:
SKU_US_25580647

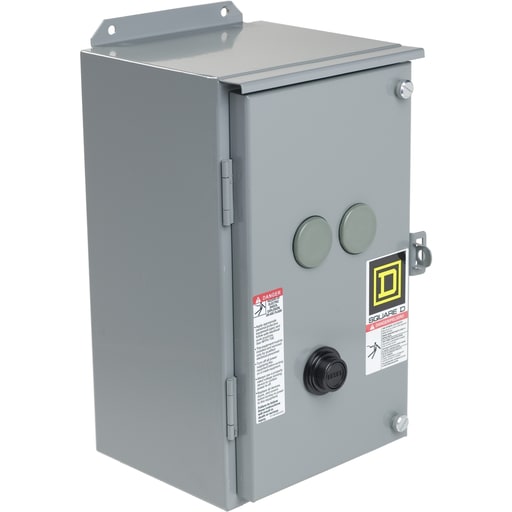

Type S nonreversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S non-reversing magnetic NEMA motor starters are for motor control applications. 8903S and 8903L lighting contactors are for lighting control applications. This enclosure is for 8502S and 8536S size 2 devices and is NEMA 12/3R rated. This enclosure is also for 8903SP and 8903L lighting contactors. This sheet steel enclosure is painted grey. Enclosure is 16.00 inches tall, 8.13 inches wide and 9.28 inches deep. Compatible Products: 8502SDA2V01S; 8502SDA2V03; 8502SDA2V07; 8536SDA1V02CS; 8536SDA1V02H30S; 8536SDA1V02S; 8536SDA1V02SX11; 8536SDA1V06; 8903SPA1V08; 8903SPA2V02C; 8903SPA3V02C
