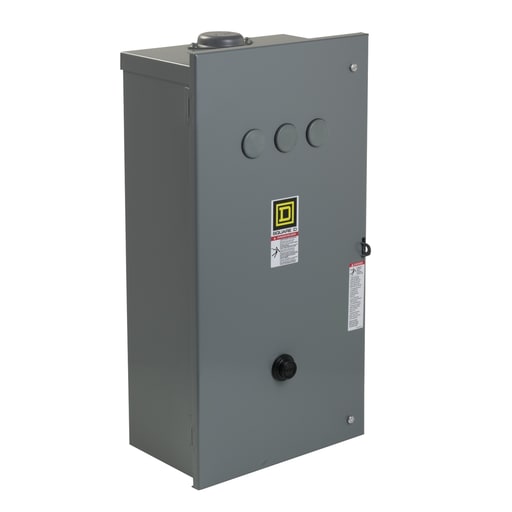

Square-D / Schneider - Square D 9991SEH1 12.63 x 8.62 x 25.3 Inch NEMA 3R Contactor/Starter Enclosure
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901823254
Applications - FOR CLASS 8502S, 8536S AND 8903S CONTACTORS/STARTERS
Catalog Number - 9991SEH1
Country of Origin - Mexico
Depths - 219 mm
Packaging
1 ea
EAN
00785901823254
Part #
195887
Catalog #
9991SEH1
Commercial reference
9991SEH1
12-Digit UPC:
785901823254
Applications:
FOR CLASS 8502S, 8536S AND 8903S CONTACTORS/STARTERS
Catalog Number:
9991SEH1
Country of Origin:
Mexico
Depths:
219 mm
ERP_productname:
SQD 9991SEH1 NEMA-3R ENCL
Family Brand Name:
Square D
Heights:
643 mm
NEMA Size:
3
Size:
219 MM,3,326 MM,643 MM
Type:
ENCLOSURE
Widths:
326 mm
SoneparProductId:
SKU_US_26349081
Type S nonreversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S non-reversing magnetic NEMA motor starters are for motor control applications. 8903S lighting contactors are for lighting control applications. This enclosure is for 8502S non-reversing NEMA contactors or 8536S non-reversing NEMA motor starters Size 3. This enclosure is also for 8903SQ multipole lighting contactors. This NEMA 3R sheet steel enclosure is painted grey. The enclosure has three conduit knockouts. They are 1.00 inch, 1.25 inch and 2.00 and 2.50 inch. Enclosure is 25.30 inches tall, 12.63 inches wide and 8.62 inches deep. Compatible Products: 8903SQH1V02
