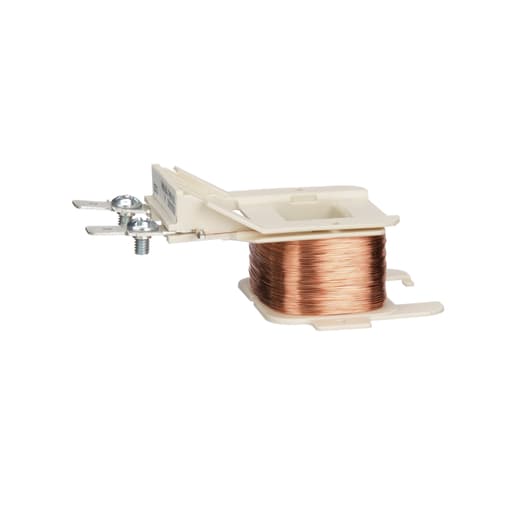

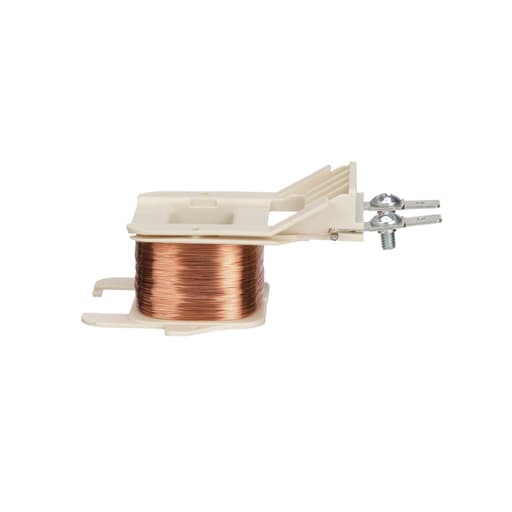

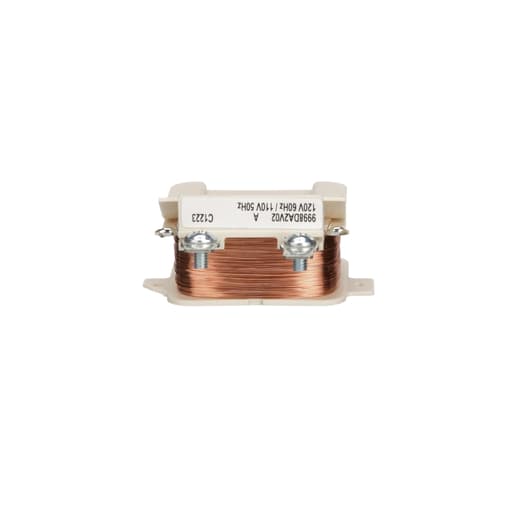

Square-D / Schneider - Square D 9998DA2V02 120 Volt 60 Hz Contactor AC Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901081449
Applications - REPLACEMENT COIL
Catalog Number - 9998-DA2V02
Coil Voltage - 120@60Hz to 110@50Hz VAC
Country of Origin - China
Packaging
1 ea
EAN
00785901081449
Part #
196025
Catalog #
9998DA2V02
Commercial reference
9998DA2V02
12-Digit UPC:
785901081449
Applications:
REPLACEMENT COIL
Catalog Number:
9998-DA2V02
Coil Voltage:
120@60Hz to 110@50Hz VAC
Country of Origin:
China
Depths:
3.67 Inch
ERP_productname:
SQD 9998DA2V02 120V COIL
Family Brand Name:
Square D
Heights:
3.27 Inch
Size:
3.67 in
Sub Brand:
SCHNEIDER ELECTRIC
Tc Connection:
SCREW CLAMP
Type:
CONTACTOR COIL
Widths:
2.56 in
SoneparProductId:
SKU_US_69910260
8910DPA definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA5 or 8910DPA6 definite purpose contactor rated 50A or 60A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 110/120 VAC 50/60 Hz coil is for a 8910DPA5 and 8910DPA6 definite purpose contactor. The inrush power of this coil is 109 VA. It has an average sealed consumption of 10 VA. This coil is 3.27 inches tall, 2.56 inches wide and 3.67 inches deep. This coil is used in a contactor that is UL listed and CSA certified.
