Square-D / Schneider - Square D 9998DA3V09 208 to 240 Volt 60 Hz Contactor AC Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901099710
Amperage - 50...60A
Applications - 2 AND 3-POLE 8910DPA CONTACTORS
Catalog Number - 9998DA3V09
Country of Origin - China
Packaging
1 ea
EAN
00785901099710
Part #
196073
Catalog #
9998DA3V09
Commercial reference
9998DA3V09
12-Digit UPC:
785901099710
Amperage:
50...60A
Applications:
2 AND 3-POLE 8910DPA CONTACTORS
Catalog Number:
9998DA3V09
Country of Origin:
China
ERP_productname:
SQD 9998DA3V09 208/220V-50 COIL
Enclosure:
60HZ
Family Brand Name:
Square D
Size:
70-90A FRAME
Sub Brand:
SCHNEIDER ELECTRIC
Tc Connection:
SCREW CLAMP
Type:
CONTACTOR COIL
Voltage:
208/220/240 VAC
SoneparProductId:
SKU_US_26074373

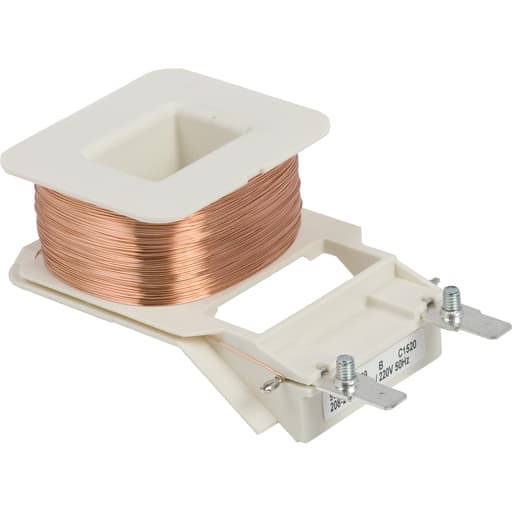

8910DPA definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This replacement coil is for 8910DPA7 or 8910DPA9 definite purpose contactor rated 75A or 90A with 2 or 3 poles. Replacement coils are available with a variety of coil voltages. This 220/240 VAC 50/60 Hz coil is for a 8910DPA7 and 8910DPA9 definite purpose contactor. The inrush power of this coil is 214 VA. It has an average sealed consumption of 19 VA. This coil is used in a contactor that is UL listed and CSA certified.
