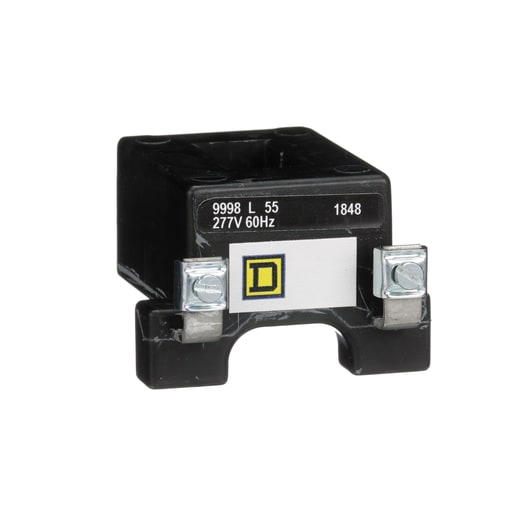

Square-D / Schneider - Square D 9998L55 277 Volt 60 Hz Contactor AC Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901081241
Applications - REPLACEMENT COIL
Catalog Number - 9998L55
Coil Voltage - 277@60Hz V
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901081241
Part #
244323
Catalog #
9998L55
Commercial reference
9998L55
12-Digit UPC:
785901081241
Applications:
REPLACEMENT COIL
Catalog Number:
9998L55
Coil Voltage:
277@60Hz V
Country of Origin:
Mexico
Depths:
37.1 mm
ERP_productname:
SQD 9998L55 CONTACTOR, TYPE L, MULTIPOLE LIGHTING, REPLACEMENT COIL, 277 VAC 60 HZ, 8903L 2 TO 6 POLES, 8903LX 2 TO 4 POLES
Family Brand Name:
Square D
Heights:
60.5 mm
Size:
1.46 in
Tc Connection:
SCREW CLAMP
Type:
Coil
Voltage:
277 Volt
Widths:
53.6 mm
SoneparProductId:
SKU_US_69893390
8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. This will also save the cost of a whole new contactor if the coil were to fail. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 2 to 6 poles, and 8930LX, 2 to 4 poles, lighting contactors. The coil is rated for 277 VAC 60 Hz. The inrush power of this coil is 150 VA. It has an average sealed consumption of 30 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
