Square-D / Schneider - Square D 9998LX44 120 Volt 60 Hz Contactor AC Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901057727
Applications - REPLACEMENT COIL, TYPE LX
Catalog Number - 9998LX44
Coil Voltage - 120 V
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901057727
Part #
248222
Catalog #
9998LX44
Commercial reference
9998LX44
12-Digit UPC:
785901057727
Applications:
REPLACEMENT COIL, TYPE LX
Catalog Number:
9998LX44
Coil Voltage:
120 V
Country of Origin:
Mexico
Depths:
28.7 mm
ERP_productname:
SQD 9998LX44 CONTACTOR, TYPE L, MULTIPOLE LIGHTING, REPLACEMENT UNLATCH COIL, 110/120 VAC 50/60 HZ, 2 TO 12 POLES
Family Brand Name:
Square D
Heights:
44.5 mm
Size:
1.13 in
Sub Brand:
SCHNEIDER ELECTRIC
Tc Connection:
SCREW CLAMP
Type:
Coil
Voltage:
110 Volt
Widths:
62.5 mm
SoneparProductId:
SKU_US_25672412

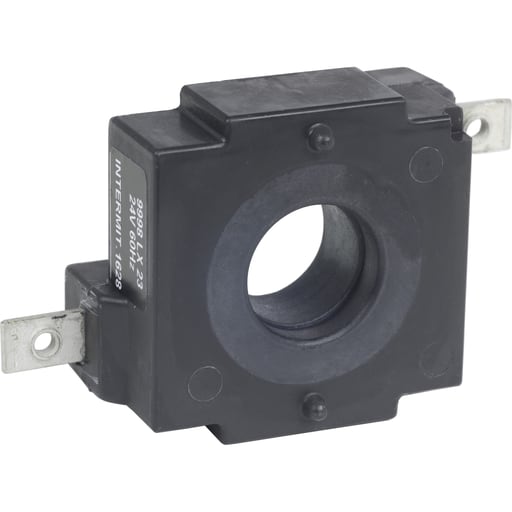

8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 LX mechanically held lighting contactor. This will also save the cost of a whole new contactor if the coil were to fail. This will also save the cost of a whole new contactor if the coil were to fail. This unlatch coil is used in any 8903LX mechanically held lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 25 VA. This coil has a height of 1.75 inches, a width of 2.46 inches and a depth of 1.13 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
