Square-D / Schneider - Square D 9998SO31 Melting Alloy Overload Relay Jumper Strap Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901862611
Applications - Overload relay
Catalog Number - 9998SO31
Country of Origin - Mexico
Depths - 3 mm
Packaging
1 ea
EAN
00785901862611
Part #
196400
Catalog #
9998SO31
Commercial reference
9998SO31
12-Digit UPC:
785901862611
Applications:
Overload relay
Catalog Number:
9998SO31
Country of Origin:
Mexico
Depths:
3 mm
ERP_productname:
SQD 9998SO31 JUMPER STRAP KIT
Family Brand Name:
Square D
Heights:
47.6 mm
Number of Poles:
2 Pole
Size:
0.12 in
Sub Brand:
SCHNEIDER ELECTRIC
Trip Type:
MELTING ALLOY
Type:
MANUAL STARTER JUMPER STRAP KIT
Voltage:
600 Volt
Widths:
23.4 mm
SoneparProductId:
SKU_US_25565530

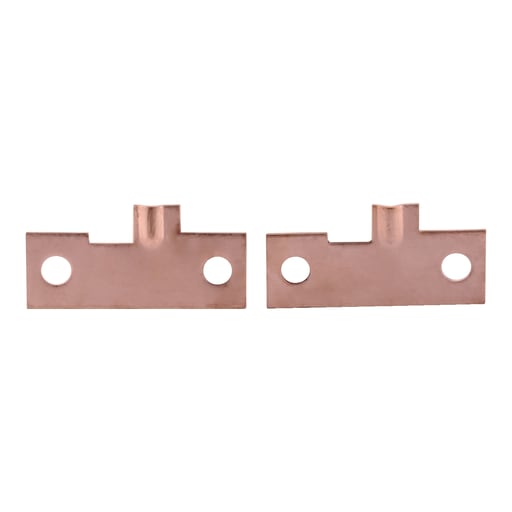

Jumper strap kits are used on three phase manual and magnetic starters with melting alloy overload relays. It is used where a three phase starter is used to control a single phase motor. This kit contains two jumper straps and a wiring diagram showing how to wire a three phase starter to control a single phase motor. It also includes a single phase thermal unit selection table. Can be used with 8536SA, 8536SB, 8536SC, 8536SD starters and 2510M and 2510T manual starters.
