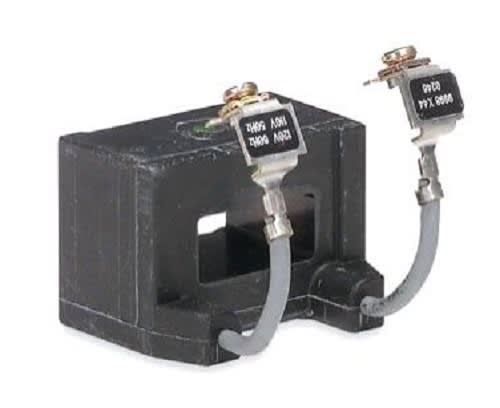

Square-D / Schneider - Square D 9998X44 120 Volt 60 Hz Relay AC Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901548843
Amperage - 143A (INRUSH), 25A (SEALED) 148A (INRUSH), 23A (S
Applications - FOR CONTACTORS, TIMERS AND 8501X RELAYS
Catalog Number - 9998X44
Depths - 4-1/4 Inch
Packaging
1 ea
EAN
00785901548843
Part #
196563
Catalog #
9998X44
Commercial reference
9998X44
12-Digit UPC:
785901548843
Amperage:
143A (INRUSH), 25A (SEALED) 148A (INRUSH), 23A (S
Applications:
FOR CONTACTORS, TIMERS AND 8501X RELAYS
Catalog Number:
9998X44
Depths:
4-1/4 Inch
ERP_productname:
SQD 9998X44 COIL 120V
Family Brand Name:
Square D
Heights:
1.44 Inch
Size:
1.44 IN,1.98 IN,4.25 IN
Tc Connection:
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type:
COIL,CONTROL RELAY
Widths:
1.98 in
SoneparProductId:
SKU_US_26348865
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. This 8501X relay replaceable coil is used in 110/120 VAC 50/60 Hz control circuits. The inrush power of this coil is 148 VA. It has an average sealed consumption of 23 VA. This coil has a height of 1.44 inches, a width of 1.98 inches and a depth of 4.25 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections. Compatible Products: 8501XMO20V02; 8501XMO40V02; 8501XMO60V02; 8501XO00V02; 8501XO1000V02; 8501XO11V02; 8501XO1200V02; 8501XO20V02; 8501XO20XLV02; 8501XO20XTD1V02; 8501XO20XTE1V02; 8501XO22V02; 8501XO30V02; 8501XO33V02; 8501XO40V02; 8501XO40XLV02; 8501XO40XTD1V02; 8501XO40XTE1V02; 8501XO44V02; 8501XO60V02; 8501XO60XLV02; 8501XO80V02; 8501XO80XLV02
