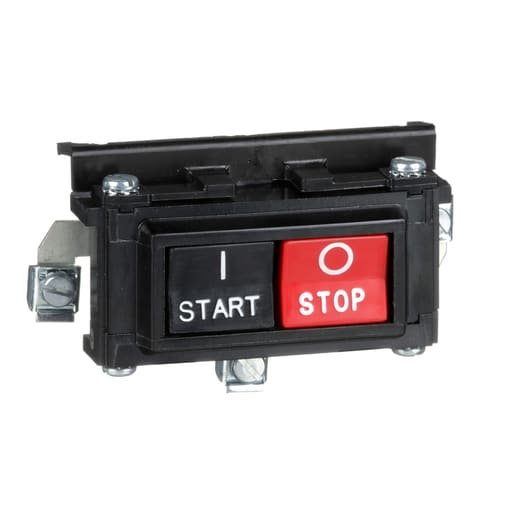

Square-D / Schneider - Square D 9999SA2 30 Amp Size 00 to 4 Start/Stop Switch NEMA Contactor/Starter Push Button Kit

CopyCopy
Square-D / Schneider - Square D 9999SA2 30 Amp Size 00 to 4 Start/Stop Switch NEMA Contactor/Starter Push Button Kit

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901867234

  • Applications - FIELD INSTALLATION OF PUSH BUTTON ON PRE-SERIES K, 8538, 8539 AND 8903 CONTACTORS/STARTERS

  • Catalog Number - 9999SA2

  • Country of Origin - USA

  • Depths - 609.6 mm

Packaging

  • 1 ea

EAN

00785901867234

Part #

196622

Catalog #

9999SA2

Commercial reference

9999SA2

12-Digit UPC:

785901867234

Applications:

FIELD INSTALLATION OF PUSH BUTTON ON PRE-SERIES K, 8538, 8539 AND 8903 CONTACTORS/STARTERS

Catalog Number:

9999SA2

Country of Origin:

USA

Depths:

609.6 mm

ERP_productname:

SQD 9999SA2 START-STOP PB KIT

Enclosure:

NEMA 1

Family Brand Name:

Square D

Heights:

25.8 mm

Mounting Type:

Panel-mounted

NEMA Size:

0,00,1,2,3

Size:

NEMA SIZE 00-3, 4, 30A AND 60A

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

SCREW CLAMP

Type:

Push-button

Widths:

65.5 mm

SoneparProductId:

SKU_US_69893429

Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Start Stop push button kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The push button kit is mounted into the knockout in the enclosure cover. This push button kit is UL listed and CSA certified. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: 8502SBG2V02S; 8502SDG2V02S; 8502SEG2V02S; 8502SFG2V02S; 8536SAG11V02; 8536SAG12V01S; 8536SAG12V02H308S; 8536SAG12V02H30S; 8536SAG12V03; 8536SAG12V06; 8536SAG12V06H30; 8536SAG12V08; 8536SBG1V02; 8536SBG1V02S; 8536SBG1V03; 8536SBG2V01S; 8536SBG2V03; 8536SBG2V03H30; 8536SBG2V06; 8536SBG2V06H30; 8536SBG2V08; 8536SBG2V08H30; 8536SBG2V08H30S; 8536SCG3V03H30; 8536SCG3V06H30; 8536SCG3V08; 8536SCG3V08H30; 8536SDG1V03; 8536SDG1V03H30; 8536SDG1V06; 8536SDG1V08; 8536SDG1V08H30; 8536SEG1V02H30S; 8536SEG1V03; 8536SEG1V06; 8538SBG11V02S; 8538SBG12V02S; 8538SBG13V02S; 8538SCG12V02S; 8538SCG14V02S; 8538SCG14V81F4T; 8538SCG61V02; 8903SMG1V02; 8903SMG2V02; 8903SMG2V03; 8903SMG3V02; 8903SPG2V02; 8903SPG2V03; 8903SPG3V02
