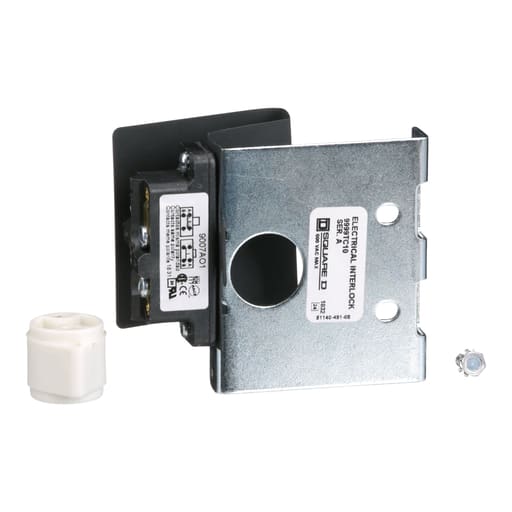

Square-D / Schneider - Square D 9999TC10 1NO 1NC Combination Starter Auxiliary Contact Interlock
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901858478
Amperage - 30/60/100 Amp
Applications - Control
Catalog Number - 9999TC10
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901858478
Part #
196857
Catalog #
9999TC10
Commercial reference
9999TC10
12-Digit UPC:
785901858478
Amperage:
30/60/100 Amp
Applications:
Control
Catalog Number:
9999TC10
Country of Origin:
Mexico
Depths:
1.44 Inch
ERP_productname:
SQD 9999TC10 INTERLOCK
Family Brand Name:
Square D
Heights:
4.16 Inch
Number of Poles:
1 Pole
Size:
1.44 in
Sub Brand:
SCHNEIDER ELECTRIC
Tc Connection:
DIRECT
Type:
Interlock
Voltage:
600 VAC
Widths:
3.21 in
SoneparProductId:
SKU_US_25660675
9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. Contact modules are UL component recognized. Compatible Products: 9422ATCF332; 9422ATCN302; 9422ATDN601; 9422ATEN101; H361DF; H362DF; HU361DF; HU362DF
