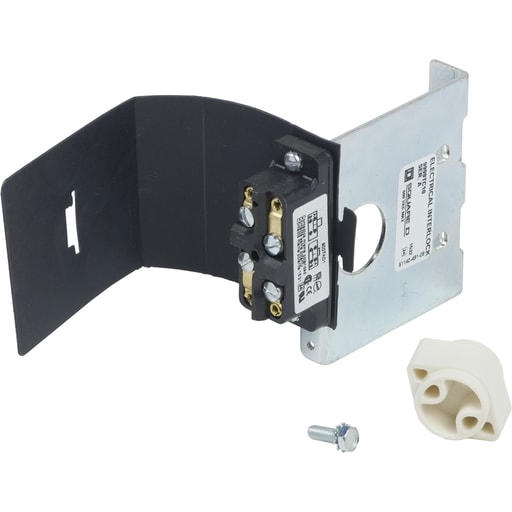

Square-D / Schneider - Square D 9999TC20 2NO 2NC Combination Starter Auxiliary Contact Interlock
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901858485
Amperage - 10 A120 V AC 50/60 HZ-10 A240 V AC 50/60 HZ-10 A480 V AC 50/60 HZ-10 A600 V AC 50/60 HZ
Applications - Control
Catalog Number - 9999TC20
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901858485
Part #
210082
Catalog #
9999TC20
Commercial reference
9999TC20
12-Digit UPC:
785901858485
Amperage:
10 A120 V AC 50/60 HZ-10 A240 V AC 50/60 HZ-10 A480 V AC 50/60 HZ-10 A600 V AC 50/60 HZ
Applications:
Control
Catalog Number:
9999TC20
Country of Origin:
Mexico
ERP_productname:
SQD 9999TC20 DISCONNECT SWITCH AUXILIARY CONTACT KIT
Family Brand Name:
Square D
Sub Brand:
SQUARE D
Type:
Interlock
SoneparProductId:
SKU_US_26344561
9422TCF, TCN, TDF, TDN, TEF, and TEN disconnect switches were designed for control panel installations. These switches include common switch profile 30 to 100 A, interchangeable fuse clips 30A to 60 A, and the ability to add fuse clip kits and cable mechanisms. This electrical interlock is for a 9422TCF, 9422TCN, 9422TDF, 9422TDN, 9422TEF and 9422TEN disconnect switches. The electrical interlocking contact for these disconnect switches has a DPDT contact that has 10A rating. Compatible Products: 9422ATCF332; 9422ATCN302; 9422ATDN601; 9422ATEN101; H361DF; H362DF; HU361DF; HU362DF
