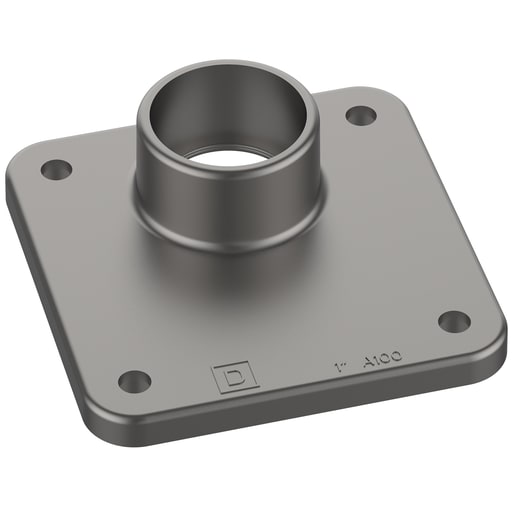

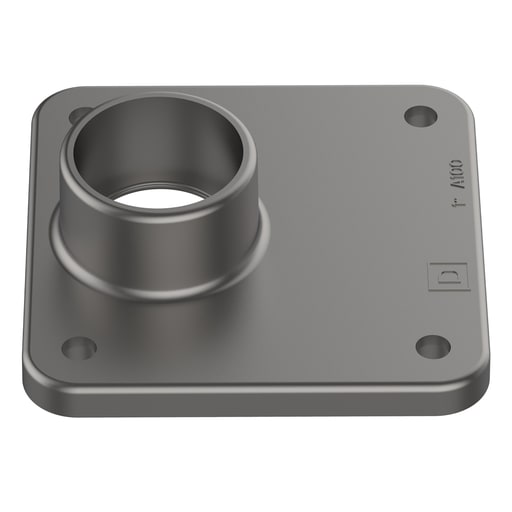

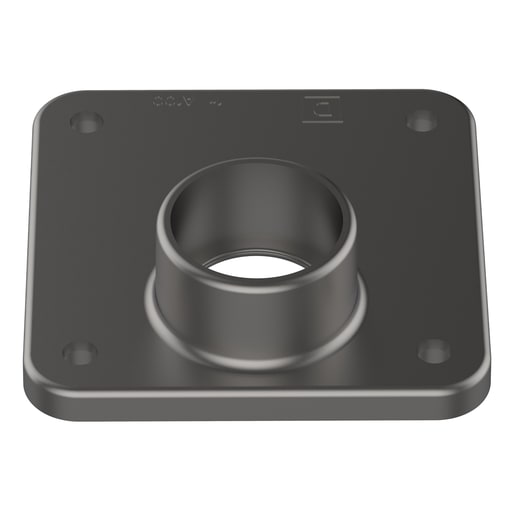

Square-D / Schneider - Square D A100 1" Rainproof Hub for Metering

Individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This bolt on hub has a 1.00 inch conduit for use on enclosures that require A hubs. Hub is fastened to the enclosure with four 12-24 x 1/2 inch slotted hex washer head screws. This hub is rainproof and measures at 3.31 inches tall, 3.31 inches wide and 1.03 inches deep. Hub is UL Listed. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: CM200S; CQRA200; QC816F150S; QC816F200S; RC200S; RC200SFMG; RC2M200S; RC3040M150SL; RC816F200C; RCM200SL; UGHTRS213C; UHTRS101B; URS202BCR; UTRS101B; UTRS212C; UTRS213B; QC816F200C; SC2040M200C; SC2040M200PF; SC2040M200PS; SC3042M200PF; SC3042M200PS
